More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TCP300PS-09-02A
Certification :	RoHS
Price :	USD 0.1-10/kg
Payment Terms :	T/T
Supply Ability :	1000000pcs/month
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design

More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

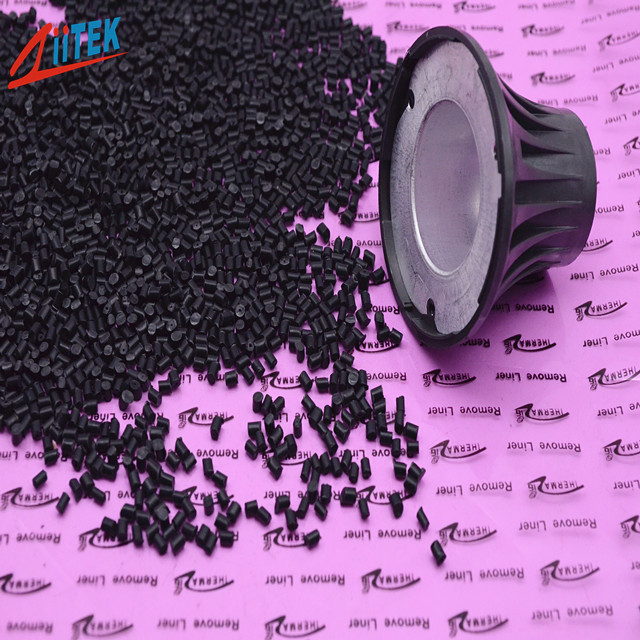

TCP™300PS-09-02A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

More Lighter Than Aluminum Thermal Heat Conductive Plastic For LED Housing Design

TCP300PS-09-02A Thermally Conductive plastic.pdf

Application

TCP™300PS-09-02A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

Features

> Good thermal conductivity: 0.9W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0.

Typical Properties of TCP^TM300PS-09-02A
Items	Test method	Unit	Typical data
Physical Properties
Material	*****	*****	Nylon
Color	Visual	*****	black
Melt index	GB/T 3682-2000	g/10min	64.85
Specific Gravity	GB/T 1033.1-2008	g/cm³	1.7
Shrinkage	GB/T 17037.4-2003	%	0.3~0.6
Mechanical Properties
Tensile Strength	GB/T 1040.2-2006	MPa	33.9
Flexural Strength	GB/T 9341-2008	MPa	41.9
Flexural Modulus	GB/T 9341-2008	MPa	9500
Impact Strength, notched	GB/T 1843-2008	kJ/㎡	40
Electrical Properties
Dielectric Breakdown Voltage	ASTM D149	VAC	>10000
Dielectric Constant, 1MHz	ASTM D150	*****	4.5
Volume Resistivity	ASTM D257	Ohm-meter	7.0*10¹²
Thermal Properties
Heat Deflection Temperature	ASTM D648	℃	170
Thermal Conductivity Throngh Plane	ASTM E1461	W/m-K	0.9
Flame retardancy	Min. thick. 1.0mm	Class	V-0

lnjection Parameters of Recommends
TCP300PS-09-02A Injection parameters		Value Range
Barrel Zone Temperature	One sect / ℃	250-280°C
	Two sect / ℃	260-290°C
	Three sect / ℃	250-270°C
Mouth Temperature / ℃		270-290°C
Melt Temperature / ℃		250-280°C
Bake Temperature / ℃		100~120°C 4H
Mould Temperature / ℃		According to the machine tonnage
Injection Pressure / Bar		According to the machine tonnage
Injection Speed / mm/s		Mediun spssd
Remarks: Data from the laboratory of the Division I (1) above are for reference only, not as a product standard reference. (2)The typical processing conditions according to different models, different mold and product requirements to make the appropriate adjustments.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
