Wholesale 5.0W Gray Silicone Thermal Pad For Automotive Engine Control Units

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF800 Series
Certification :	UL & RoHS
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	1000000 pcs/month
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

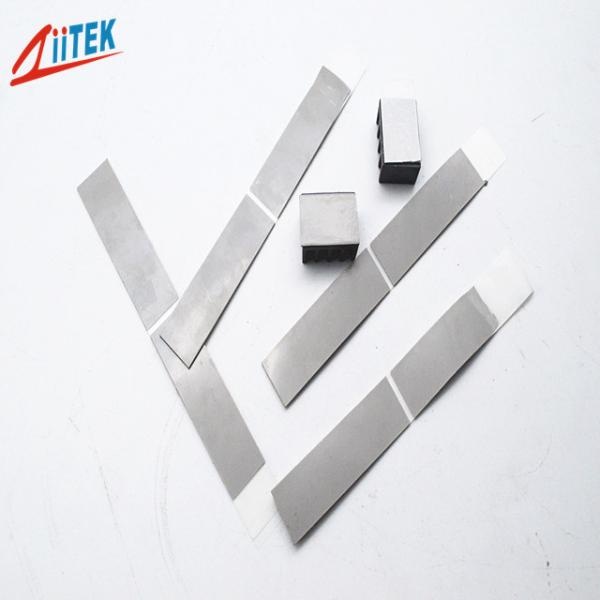

Wholesale 5.0W Gray Silicone Thermal Pad For Automotive Engine Control Units

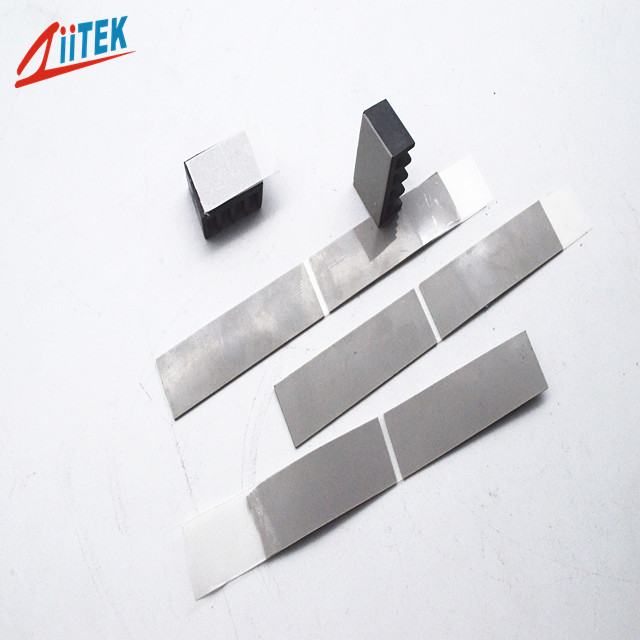

Wholesale 5.0W Gray Silicone Thermal Pad For Automotive Engine Control Units

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect.

The TIF™800 Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

> RoHS compliant
> UL recognized
> Good thermal conductive: 5.0 W/mK
>Naturally tacky needing no further adhesive coating
> Outstanding thermal performance
> Electrically isolating
> High durability

> Soft and compressible for low stress

Applications

> CPU
> Cooling components to the chassis of frame
> High speed mass storage drives
> GPS navigation and other portable devices
> LED TV and LED-lit lamps
> RDRAM memory modules
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules

Typical Properties of TIF™800 Series
Color	Gray	Visual
Construction &Compostion	Ceramic filled silicone elastomer	******

Specific Gravity	3.15g/cc	ASTM D297

thickness range	0.020"(0.50mm)~0.200"(5.0mm)	ASTM C351

Hardness	45 Shore 00	ASTM 2240

Continuos Use Temp	-45 to 200℃	******

Dielectri Breakdown Voltage(T=1.0mm)	＞5500 VAC	ASTM D149
Outgassing(TML)	0.45%	ASTM E595

Dielectric Constant	6.0 MHz	ASTM D150

Volume Resistivity	5X10¹³ Ohm-meter	ASTM D257

Fire rating	94 V0	equivalent UL

Thermal conductivity	5.0 W/m-K	ASTM D5470

Standard Thicknesses:

0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm)

0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm)

0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
