High Voltage Isolation materials Thermally Conductive Electrical Insulator

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIS100-01
Certification :	UL & RoHS
Price :	0.1-10 USD/pcs
Delivery Time :	3-6 work days

Add to Cart

Product Details
Company Profile

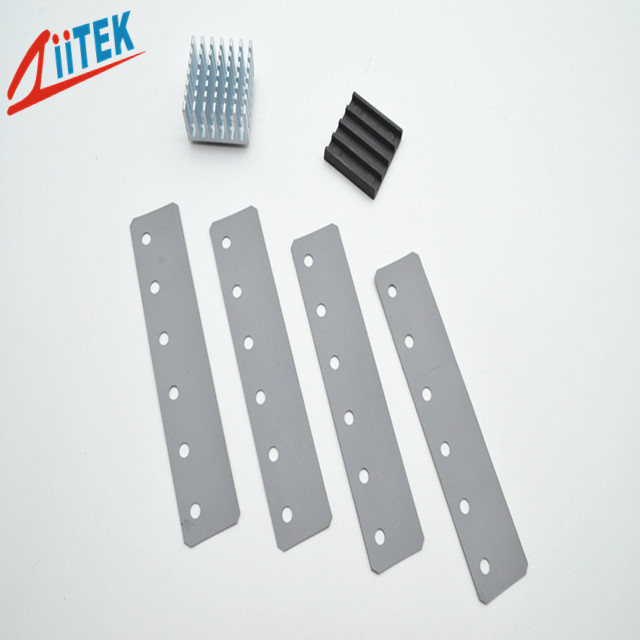

High Voltage Isolation materials Thermally Conductive Electrical Insulator

High Voltage Isolation materials Thermally Conductive Electrical Insulator

TIS100-01 Serice Datasheet-(E)-REV01.pdf

The TIS™100-01 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

High Voltage Isolation materials Thermally Conductive Electrical Insulator
Features

> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Easy release construction
> Electrically isolating
> High durability

Applications

> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes

Typical Properties TIF^TM100-01 Series
Color	Gray	Visual
Construction & Composition	Ceramic filled silicone elastomer	******
Thickness range	0.15mm-0.45mm	ASTM D374
Specific Gravity	2.06 g/cc	ASTM D297
Tensile Strength	425 Kpsi	ASTM D412
Continuous Use Temperature	-45~180℃	******
Dielectric breakdown voltage	＞3500VAC	ASTM D149
Dielectric Constant@1MHz	5.5	ASTM D150
Volume Resistivity	＞4*10¹² Ohm-cm	ASTM D257
Thermal Conductivity	1.0W/mk	ISO22007.2.2
Flame Rating	94 V0	UL E331100

Standard Thicknesses:
0.005"(0.127mm)

0.006"(0.152mm)

0.008"(0.203mm)

0.009"(0.228mm)
0.010"(0.254mm)

0.012"(0.304mm)

0.018"(0.457mm)
Consult the factory alternate thickness.

Standard Sizes:
16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.

Reinforcement:
TIS™ series sheets are fiberglass reinforced.

Company profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.
