Pink Thermally Conductive Electrical Insulator Thermal Interface
Materials
With a wide range, good quality, reasonable prices and stylish
designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks,
DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power
products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED
Server Power products and others.
TIS100-02
Series Datasheet-(E)-REV01 (1).pdf

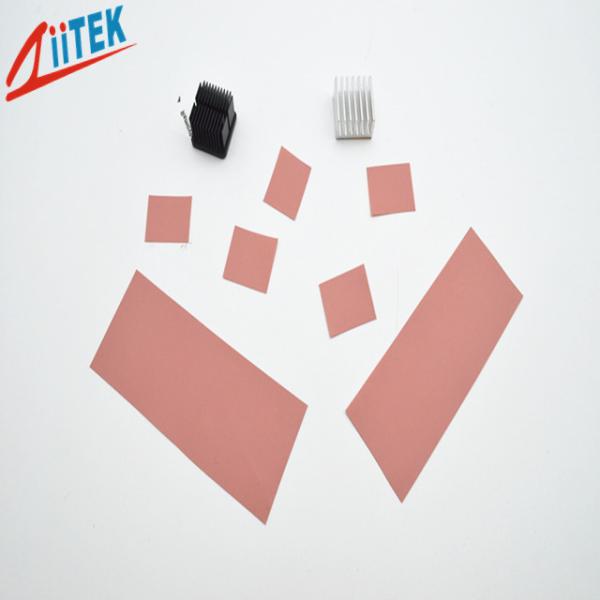

The TIS™100 Series products are the high-efficiency insulation ones with thermal
conduction properties. The supplement of the insulation base film
made by silica gel into the heat-conduction material creates a
great effect on both the insulation and heat conduction.Their
flexibility and elasticity make them suited to the coating of the
very uneven surfaces. Heat can transmit to the metal housing or
dissipation plate from the separate elements or even the entire
PCB, which in effect enhances the efficiency and life-time of the
heat-generating electronic components.
Features
>Moldability for complex parts
> Highly compliant surface characteristic with high thermal
conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications
> Power conversion equipment
>LED TV and LED-lit lamps
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface
| Typical Properties of TIS100-02 series |
| Product Name | TIS109-02 | TIS112-02 | TIS118-02 | Test Method |
| Color | Pink | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer / Fiberglass | ******* |
| Composite Thickness | 0.23mm | 0.3mm | 0.45mm | ASTM D374 |
| Hardness | 50 Shore A | ASTM D751 |
| Specific Gravity | 1.751g/cc | ASTM D297 |
| Tensile Strength | 425 Kpsi | ASTM D412 |
| Continuous Use Temp | -45 to 180℃ | ******* |
| Dielectric Breakdown Voltage | >3500 VAC | ASTM D149 |
| Dielectric Constant | 5.5 MHz | ASTM D150 |
| Volume Resistivity | 4.0X10¹³ Ohm-meter | ASTM D257 |
| Flame Rating | 94 V0 | E331100 |
| Thermal conductivity | 1.0 W/mK | ASTM D5470 |
Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.
Standard Sizes:
16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)
Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Reinforcement:
TIS™ series sheets are fiberglass reinforced.
