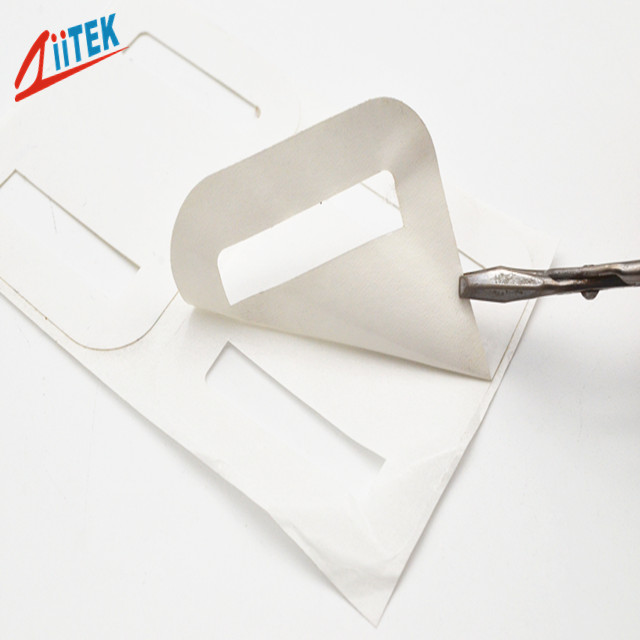

Heat Resistant Double Sided LED Light Thermal Conductive Adhesive
Tape
With professional R&D capabilities and over 13 year experiences
in thermal interface material industry, Ziitek company own many
unique formulations which are our core technologies and advantages.
Our goal is to provide quality & competitive products to our
customers worldwide aiming for long-term business cooperation.
The TIA™800 Series products are mostly used for bonding heat dissipation fins,
microprocessors and other power consumption semiconductors. This
type of adhesive tape possesses ultimate bonding strength with low
thermal impedance, with which in effect can be able to replace the
method of lubricating grease and mechanical fixing.
TIA800-Series-Datasheet
1-REV01.pdf
Features
> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided
pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive
Applications
> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor
control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or
clip mounting
| Typical Properties of TIA™800 Series |
| Product Name | TIATM802 | TIATM804 | TIATM806 | TIATM808 | TIATM810 | TIATM812 | TIATM815 | Test Method |
| Color | White | Visual |
| Adhesive Type | Acrylic Adhesive | ****** |
| Backing Type | N/A | ****** |
| Continuous Use Temp | -45℃ to 120℃ | ****** |
| Thickness | 0.019" 0.05mm | 0.004" 0.101mm | 0.006" 0.152mm | 0.008" 0.203mm | 0.010" 0.254mm | 0.012" 0.304mm | 0.015" 0.381mm | ASTM D374 |
| Voltage Breakdown | > 600Vac | > 1200Vac | > 1800Vac | > 2500 Vac | > 2700 Vac | > 3000 Vac | > 4000 Vac | ASTM D149 |
| Thermal Conductivity | 0.8 W/mK | ASTM D5470 |
| 180° Peel Adhesion | >1200 g/inch (Steel Immediate) | PSTC-1 |
| 180° Peel Adhesion | > 1200 kg/inch(Steel after 24 hrs) | PSTC-1 |
| Holding Power 25℃/Hours | > 48 Hours | PSTC-7 |
| Holding Power 80℃/Hours | > 48 Hours | PSTC-7 |
Standard Thicknesses:
0.0019" (0.05 mm)
0.004"(0.101mm)
0.006"(0.152mm)
0.008"(0.203mm)
0.010"(0.254mm)
0.012"(0.304mm)
0.015"(0.381mm)
Consult the factory alternate thickness.
Standard sizes:
16"x 100'(406mm x 30.48M)Individual die cut shapes can be supplied.
Reinforcement:
TIATM800 series rolls type can add with fiberglass reinforced.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries
in English of course.
Standard Export Carton Or Marked With Customer's Information Or
Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if
you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory
solution.
