    CPU/GPU Cooler Thermal Paste Compound Silicone Thermal Grease Insulation Material For Better Performance

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIG780-10
    Certification : RoHS
    Price : USD 1-100/KG
    Payment Terms : TT
    Supply Ability : 10000KG/month
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    CPU/GPU Cooler Thermal Paste Compound Silicone Thermal Grease Insulation Material For Better Performance

    CPU/GPU Cooler Thermal Paste Compound Silicone Thermal Grease Insulation Material For Better Performance

    With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.


    The TIG™780-10 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issue.

    TIG™780-10 is presenting thermal paste products. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance. Consequently, the heat dissipation efficiency is farsuperior to that offered by others.


    TIG780-10 Series Datasheet-(E)-REV01.pdf

    CPU/GPU Cooler Thermal Paste Compound Silicone Thermal Grease Insulation Material For Better Performance


    Features
    > Low thermal resistance 0.15 ℃-in² /W
    > Outstanding electrical insulation properties
    > Non-toxic and environmentally safe

    > Thoroughly wets out contact surfaces tocreate low thermal resistance


    Applications
    > Cooling components to the chassis of frame
    > High speed mass storage drives
    > Heat Sinking Housing at LED-lit BLU in LCD
    > LED TV and LED-lit lamps
    > RDRAM memory modules
    > Micro heat pipe thermal solutions
    > Automotive engine control units


    Typical Properties of TIG™780-10 Series
    ProductNameTIG™780-10Test Method
    ColorWhiteVisual
    Construction & CompostionMetal oxide filler silicone oil******
    Specific Gravity(g/cm³)2.13ASTM D297
    Viscosity(Pa.s @ 25℃)1000Brookfield DV2T
    Thermal Conductivity1.0W/mKASTM D5470
    Bond line thickness(mm)0.012ASTM D374
    Thermal lmpedance(℃.in²/W) @50psi0.015ASTM D5470
    Continuous Use Temp (℃)-45~200℃Ziitek Test Method
    Evaporation(TML 200℃ @24 hrs)0.23%ASTM E595

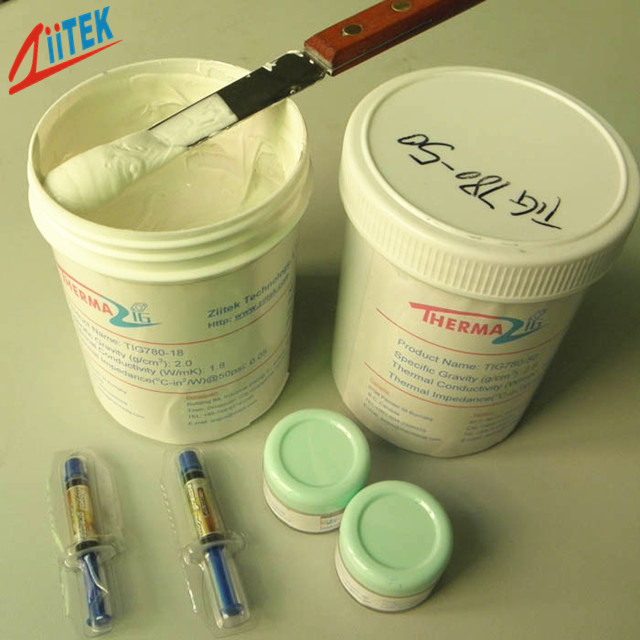

    Package:
    TIG™780 series is available in

    1kg (pint container),

    3kg (quart container)

    10kg (gallon container)

    or custom packaged in syringes for automated applications.
