Nylon Heat Conductive Plastic High Performance Low Weight For LED
Housing
TCP™100-01PP is a Thermally Conductive Engineering Plastic developed for the
housing design which requires high thermally conductivity and
reduces the weight more than 30% comparing with the same aluminium
devices.
Application

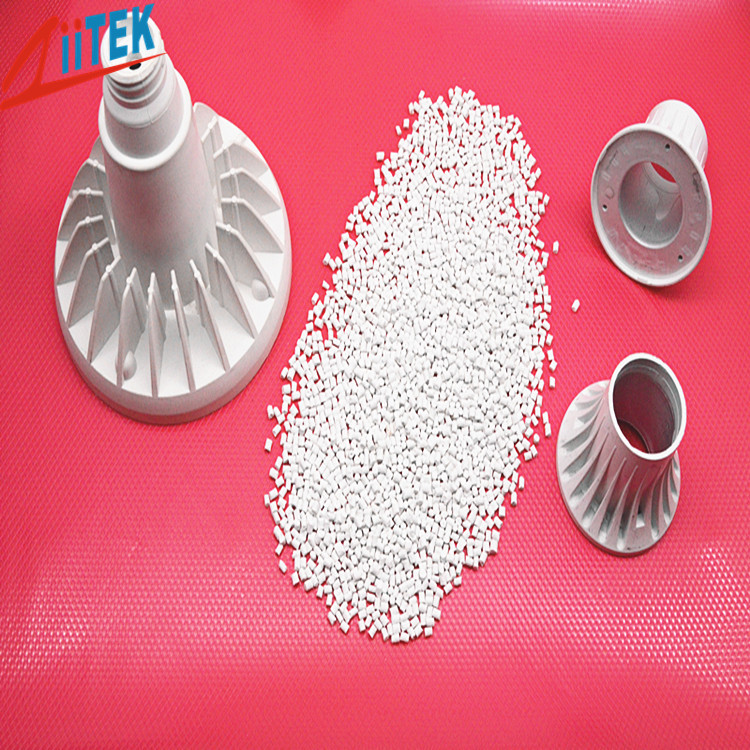

TCP™100-01PP can be used in applications such as Heat Sinking
Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as
MR16. Also it can replace the normal Aluminum heat sink.
Features
> Good thermal conductivity: 0.8W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting
> Excellent flexibility in designing final products such as housings.
> UL94 V-0.
Typical Properties of TCPTM100-01PP
|
| Items | Test method | Unit | Typical data |
| Physical Properties |
| Color | Visual | ***** | White |
| Melt index | ASTM D1238 | g/10min | 14.73 |
| Specific Gravity | ASTM D792 | g/cm³ | 1.55 |
| Shrinkage | ASTM D955 | % | 1.3 |
| Mechanical Properties |
| Tensile Strength | ASTM D638 | MPa | 9.92 |
| Flexural Strength | ASTM D790 | MPa | 38 |
| Flexural Modulus | ASTM D790 | MPa | 3900 |
| Impact Strength, notched | GB/T 1483-2008 | kJ/m2 | 8.9 |
| Electrical Properties |
| Dielectric Breakdown Voltage | ASTM D149 | VAC | >10000 |
| Dielectric Constant, 1MHz | ASTM D150 | ***** | 3.1 |
| Volume Resistivity | ASTM D257 | Ohm-meter | 7.0 X 10¹² |
| Thermal Properties |
| Heat Deflection Temperature | ASTM D648 | ℃ | 130 |
| Thermal Conductivity Throngh Plane | ASTM E1461 | W/m-K | 0.8 |
| Flame retardancy | Min. thick. 1.0mm | Class | V-0 |
