3.0 W/mK High Durability and High Cost-effective Silicone Pads for
Display Card
Company Profile
With a wide range, good quality, reasonable prices and stylish
designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks,
DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power
products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED
Server Power products and others.
TIF100-30-02US-Datasheet-REV02.pdf

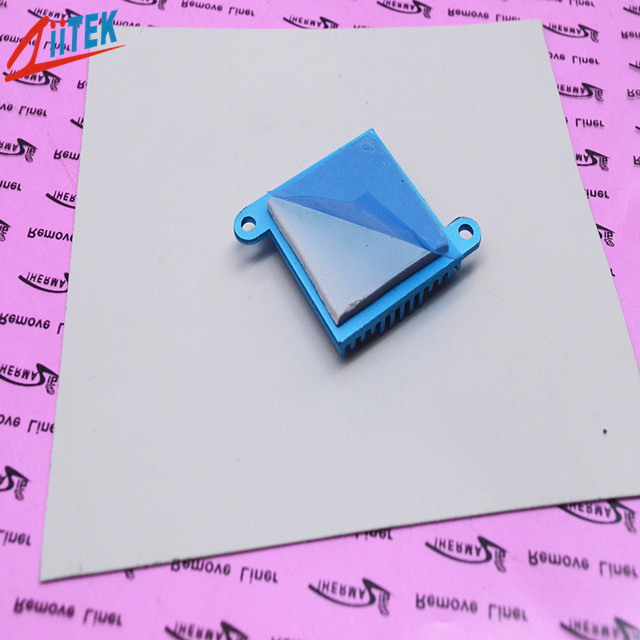

Ziitek TIF1200-30-02US use a special process, with silicone as the base material, adding
thermal conductive powder and flame retardant together to make the
mixture to become thermal interface material. This is effective in
lower the thermal resistance between the heat source and the heat
sink.
<Good thermal conductive:3.0W/mK
<Thickness:5.0mmT
<Hardness:20 Shore 00
<Colour: gray
<Outstanding thermal performance
<High tack surface reduces contact resistance
<RoHS compliant

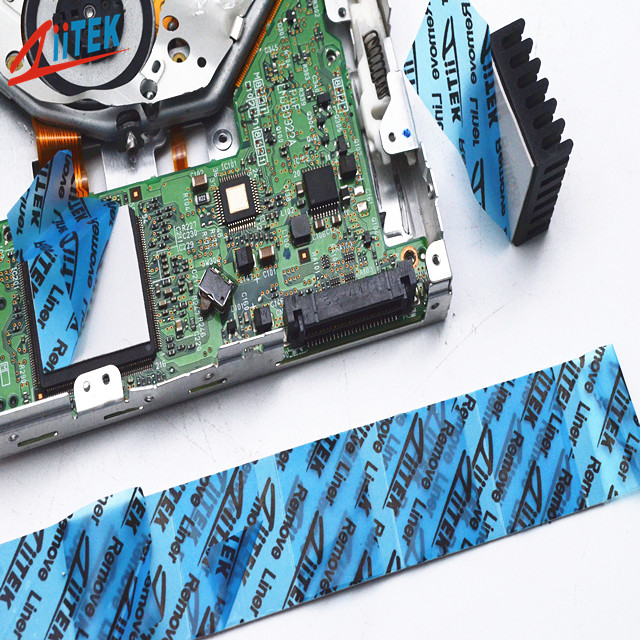

Applications
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
Typical Properties of TIF1200-30-02US |
Product Name | TIF1200-30-02US Series |
Colour | Gray |
Construction & Compostion | Ceramic filled silicone elastomer |
Specific gravity | 2.9 g/cc |
Thickness | 5.0mmT |
Hardness | 20 Shore 00 |
Dielectric constant@1MHz | 3.8 MHz |
Continuos Use Temp | -40 to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 3.0 W/mK |
| Volume Resistivity | 1.0*1012 Ohm-cm |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including
dimension , shape , color and coated on side or two sides adhesive
or coated fiberglass. If you want to place a custom order , pls
kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other
requirements, such as adhesive and others. Please let us know these
factors first so that we could give you an exact price.
