    5.0mmt Silicone Thermal Pad Naturally Tacky Needing No Further Adhesive Coating For Ate

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIF1200-01US thermal pad
    Certification : UL
    Price : 0.1-10 USD/PCS
    Payment Terms : T/T
    Supply Ability : 100000pcs/month
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

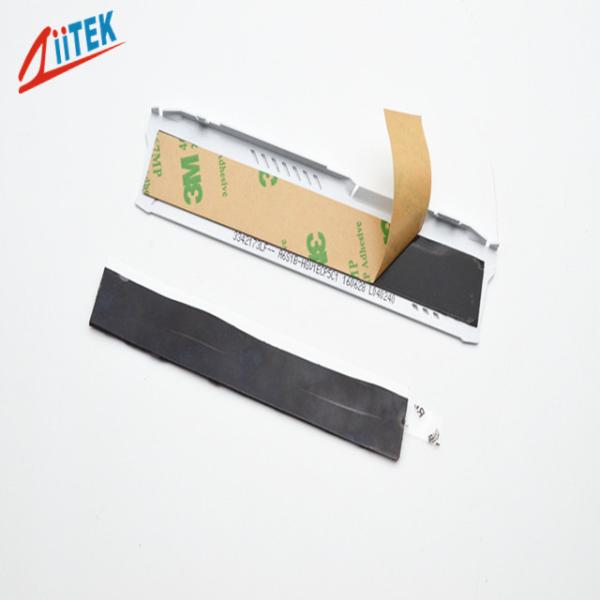

    5.0mmt Silicone Thermal Pad Naturally Tacky Needing No Further Adhesive Coating For Ate

    5.0mmT Naturally tacky needing no further adhesive coating silicone pads for ATE


    Company Profile

    Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.


    TIF100-01US-Series-Datasheet.pdf
    Ziitek TIF1200-01US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
    <Good thermal conductive:1.5 W/mK
    <Thickness: 5.0mmT
    <Hardness:20 Shore 00
    <Colour: Black

    <Outstanding thermal performance
    <High tack surface reduces contact resistance
    <RoHS compliant


    Applications

    <Automotive engine control units

    <Telecommunication hardware

    <Handheld portable electronics

    <Semiconductor automated test equipment (ATE)

    <CPU

    <display card


    Typical Properties of TIFTIF1200-01US
    Product Name

    TIF1200-01US Series

    Colour
    Black
    Construction & Compostion
    Ceramic filled silicone elastomer

    Specific gravity

    1.9 g/cc

    Thickness

    5.0mmT
    Hardness
    20 Shore 00
    Dielectric constant@1MHz
    2.9 MHz
    Continuos Use Temp
    -40 to 160℃

    Dielectric Breakdown Voltage

    >5500 VAC
    Thermal conductivity
    1.5 W/mK
    Volume Resistivity

    1.0*1012 Ohm-cm


    Standard Sheets Sizes:

    8" x 16"(203mm x 406mm)


    TIF™ series Individual die cut shapes can be supplied.
