Company Profile
Ziitek company is a high-tech enterprise which dedicated to the
R&D, manufacture and sales of the thermal interface materials
(TIMs). We have rich experiences in this field which can support
you the latest, most effective and one -step thermal management
solutions. We have many advanced production equipments,full test
equipments and fully automatic coating production lines which can
support the production for high performance thermal silicone pad,
thermal graphite sheet/ film, thermal double-sided tape, thermal
insulation pad, thermal ceramic pad, phase change material, thermal
grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF700HZ-Series-Datahseet.pdf

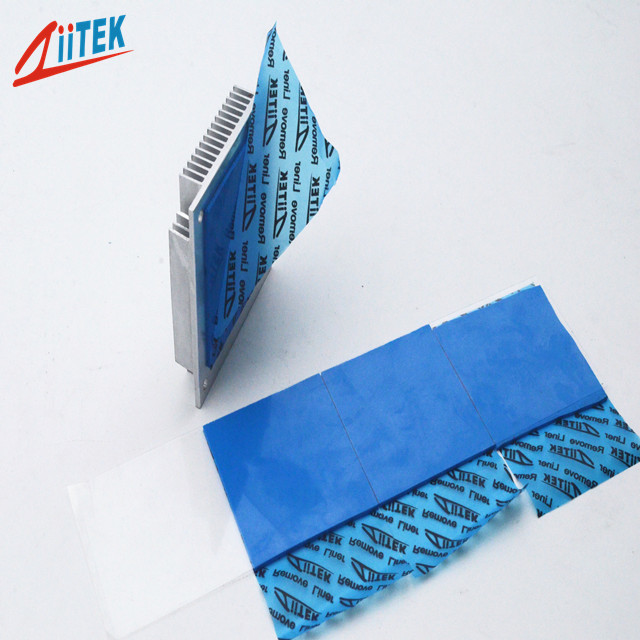

Ziitek TIF760HZ use a special process, with silicone as the base material, adding
thermal conductive powder and flame retardant together to make the
mixture to become thermal interface material. This is effective in
lower the thermal resistance between the heat source and the heat
sink.
Typical Properties of TIF760HZ |
| Product Name | TIF760HZ Series |
| Colour | Blue |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 3.45 g/cc |
| Thickness | 1.5mmT |
| Hardness | 55±5 |
| Dielectric constant@1MHz | 4.5 MHz |
| Continuos Use Temp | -40 to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 7.0W/mK |
| Flame Rating | 94-V0 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality
control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including
dimension , shape , color and coated on side or two sides adhesive
or coated fiberglass. If you want to place a custom order , pls
kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other
requirements, such as adhesive and others. Please let us know these
factors first so that we could give you an exact price.
