Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal
interface materials, thermal conductive insulators, thermally
conductive tapes, electrically & thermally conductive Interface
pads and thermal grease,Thermal Conductive plastic,Silicone
Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
TIF700HZ-Series-Datahseet.pdf

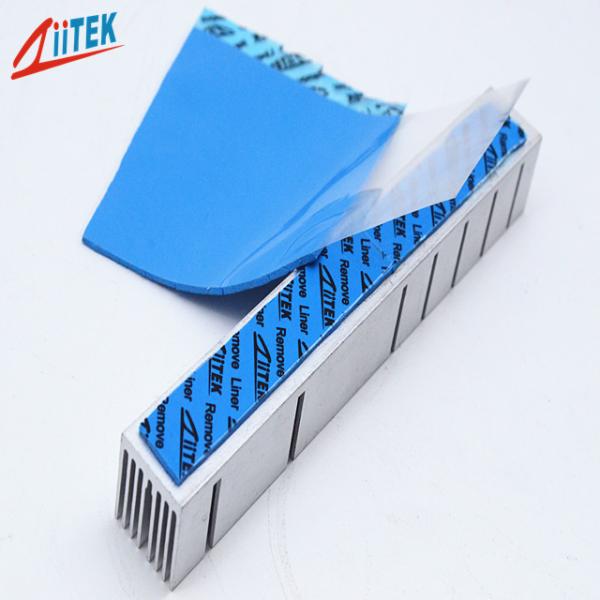

Ziitek TIF7160HZ thermal silicone pad is a product with both performance and economy. It is a unique
thermal pad with low oil permeability, low thermal resistance, high
softness and high compliance.It can work stably at -40℃~160℃ and
meet the requirement of UL94V0.
Typical Properties of TIF7160HZ |
| Product Name | TIF7160HZ Series |
| Colour | Blue |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 3.45 g/cc |
| Thickness | 4.0mmT |
| Hardness | 55±5 |
| Dielectric constant@1MHz | 4.5 MHz |
| Continuos Use Temp | -40 to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 7.0W/mK |
| Flame Rating | 94-V0 |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team,
engineering team, R&D team, Manufacturing team, logistics team.
All is for supporting and servicing a satisfy service for
customers.
FAQ
Q: What's the thermal conductivity test method given on the data
sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM
D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat
dissipation. Please tell us your detailed applications and the
power, so we can recommend most suitable thermal conductive
materials.
