Dielectric Breakdown Voltage ≥5500 Grey Silicone Pads For Mass Storage Drives

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF7140HM thermal pad
Certification :	UL
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	100000pcs/month
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

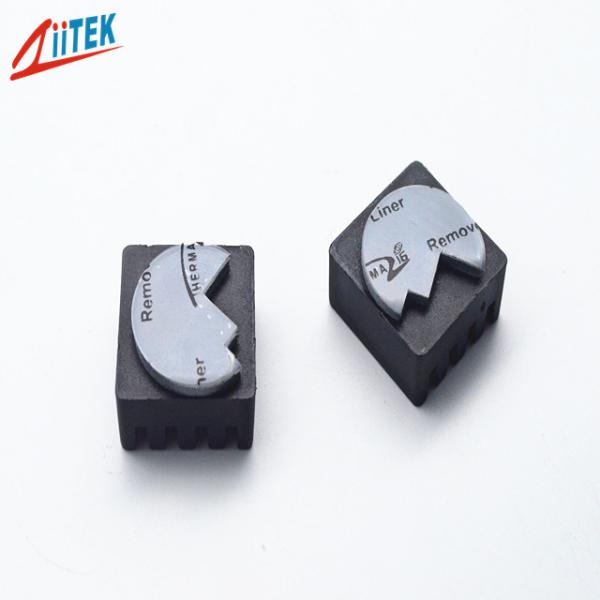

Dielectric Breakdown Voltage ≥5500 Grey Silicone Pads For Mass Storage Drives

Dielectric Breakdown Voltage ≥5500 Grey Silicone Pads for High Speed Mass Storage Drives

Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

TIF700HM-Series-Datasheet.pdf

Ziitek TIF7140HM use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

< Good thermal conductive: 6.0 W/mK

< Thickness: 3.5mmT

< Hardness: 45±5 Shore 00

< Colour: Grey

<Moldability for complex parts
<Soft and compressible for low stress applications
<Naturally tacky needing no further adhesive coating

Applications

<cooling components to the chassis of frame

<High speed mass storage drives

<Heat Sinking Housing at LED-lit BLU in LCD

<LED TV and LED-lit lamps

<RDRAM memory modules

<Micro heat pipe thermal solutions

Typical Properties of TIF7140HM
Product Name	TIF7140HM Series
Colour	Grey
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	3.3 g/cm³
Thickness	3.5mmT
Hardness	45±5 Shore 00
Dielectric constant@1MHz	4.5 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	6.0W/mK
Flame Rating	94-V0

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
