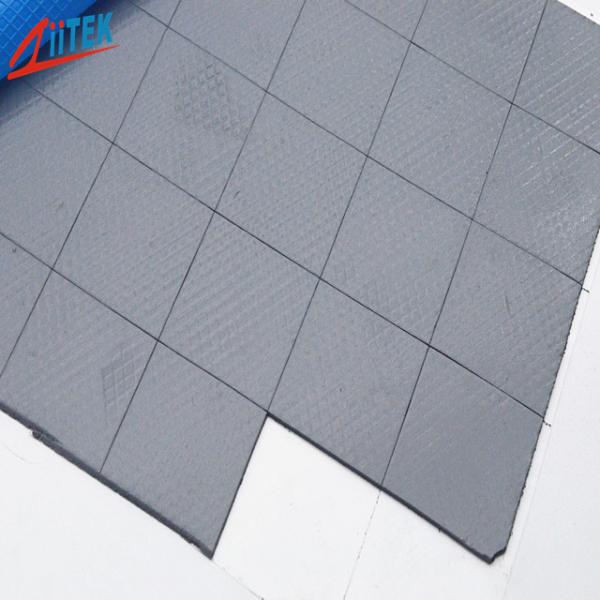

TIF100N-40-10F-Specification-sheet.pdfZiitek TIF120N-40-10F use a special process, with silicone as the base material, adding
thermal conductive powder and flame retardant together to make the
mixture to become thermal interface material. This is effective in
lower the thermal resistance between the heat source and the heat
sink.
Typical Properties of TIF120N-40-10F |
| Product Name | TIF120N-40-10F Series |
| Colour | Gray |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 2.1 g/cm^3 |
| Thickness | 0.5mmT |
| Hardness | 55±5 Shore 00 |
| Dielectric constant@1MHz | 4.7 MHz |
| Continuos Use Temp | -40 to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 4.0W/mK |
| Volume Resistivity | 1.0*1012 Ohm-cm |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
