High Durability Blue Heat Sink Thermal Pad For Telecommunication Hardware

High Durability Blue Heat Sink Pad for Telecommunication Hardware

Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

TIF100-05UF-Datasheet-REV02.pdf

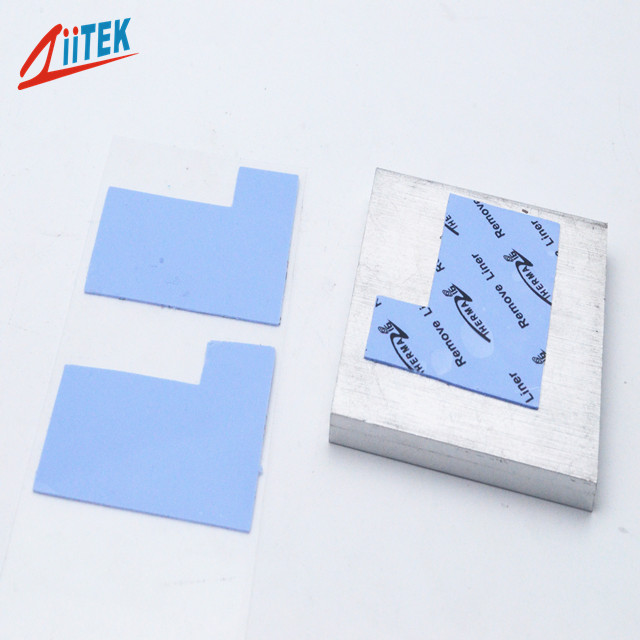

Ziitek TIF1200-05UF thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

<Good thermal conductive:1.5 W/mK

<Thickness: 5.0mmT

<Hardness:75 Shore 00

<Colour: Blue

<Easy release construction
<Electrically isolating
<High durability

Applications

<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card

Typical Properties of TIF1200-05UF
Product Name	TIF1200-05UF Series
Colour	Blue
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	2.2 g/cc
Thickness	5.0mmT
Hardness	75 Shore 00
Dielectric constant@1MHz	3.9 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	1.5 W/mK
Volume Resistivity	1.0*10^{12 _Ohm-cm}

Packaging Details & Lead time

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated

Independent R&D team

Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online

FAQ

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
