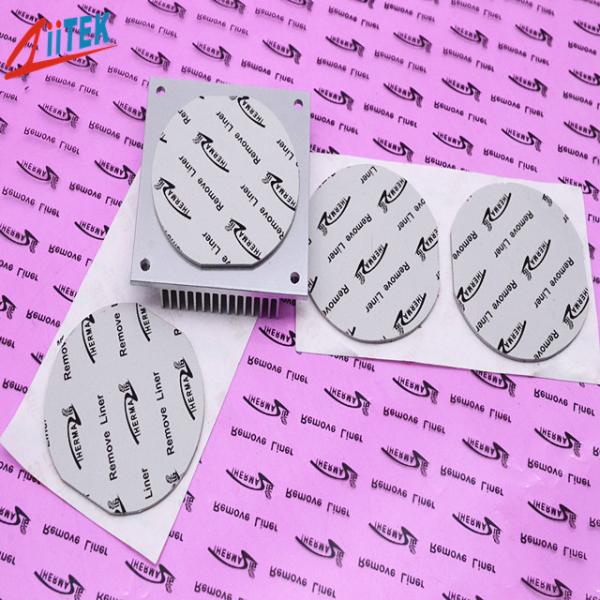

Ziitek TIF740HP is an extremely soft gap filling material rated at a thermal
conductivity of 7.5W/m-K. It is specially formulated for high performance applications
requiring low assembly stress. The material offers exceptional
thermal performance at low pressures due to the unique filler
package and ultra low modulus resin formulation. Ziitek TIF740HP is highly conformal to rough or irregular surfaces, allowing
excellent wet-out at the interface. Protective liners are supplied
on both sides allowing for ease of use.
Typical Properties of TIF740HP |
| Product Name | TIF740HP Series |
| Colour | grey |
| Construction & Compostion | Ceramic filled silicone elastomer |
| Specific gravity | 3.3 g/cc |
| Thickness | 1.0mmT |
| Hardness | 45±5 |
| Dielectric constant@1MHz | 4.5 MHz |
| Continuos Use Temp | -40 to 160℃ |
| Dielectric Breakdown Voltage | >5500 VAC |
| Thermal conductivity | 7.5W/mK |
| Flame Rating | 94-V0 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
