20 Shore 00 LED Power Supply applied 2.5mmT ultra soft thermal gap
pad Pad 4.0W/MK

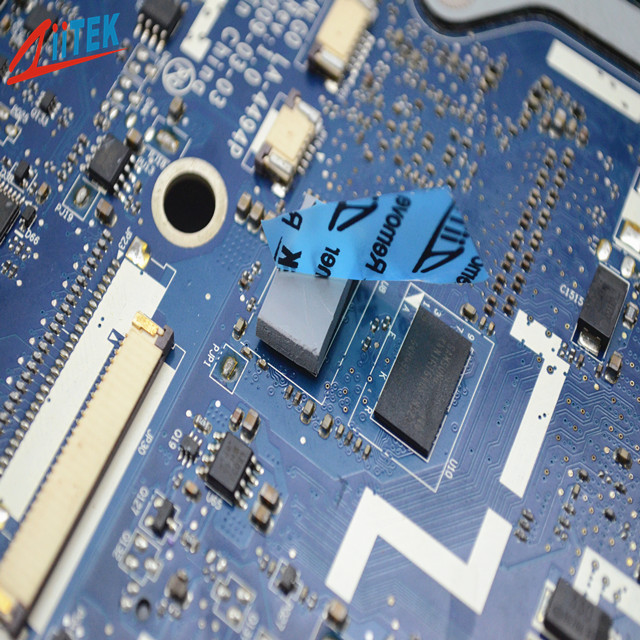

TIF5100-40-11US Series thermally conductive interface materials are
applied to fill the air gaps between the heating elements and the
heat dissipation fins or the metal base.Their flexibility and
elasticity make them suited to coat very uneven surfaces. Heat can
transmit to the metal housing or dissipation plate from the heating
elements or even the entire PCB, which effecitly enhances the
efficiency and life-time of the heatgenerating electronic
components.
TIF500-40-11US
Datasheet-REV02.pdf
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal
interface materials, thermal conductive insulators, thermally
conductive tapes, electrically & thermally conductive Interface
pads and thermal grease,Thermal Conductive plastic,Silicone
Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Features
<Thickness:2.5mmT
<Good thermal conductive:4.0W/MK
<Moldability for complex parts
<Soft and compressible for low stress applications
<Naturally tacky needing no further adhesive coating
<Available in varies thicknesses
<Broad range of hardnesses available
<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance
<RoHS compliant
Applications
<Rainproof LED Power
<power supply
<Heat pipe thermal solutions
<Memory Modules
<Mass storage devices
<Automotive electronics
<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
<CD-Rom, DVD-Rom cooling
<LED Power Supply
<Rainproof LED Power
<Waterproof LED Power
Typical Properties of TIF 5100-40-11US |
Product Name | TIF5100-40-11US Series |
Colour | Grey |
Construction & Compostion | Ceramic filled silicone rubber |
Specific Gravity | 3.1 g/cc |
Dielectric Constant@1MHz | 4.0 MHz |
Hardness | 20 Shore 00 |
Outgassing (TML) | 0.35% |
Continuos Use Temp | -40 to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 4.0W/mK |
Thickness | 2.5mmT |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
