2.5mmT Silicone Thermal Pad 1.8 W/MK 25shore00 For Heat Pipe Thermal Solutions

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF5100-18-11US thermal pad
Certification :	UL
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	100000pcs/month
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

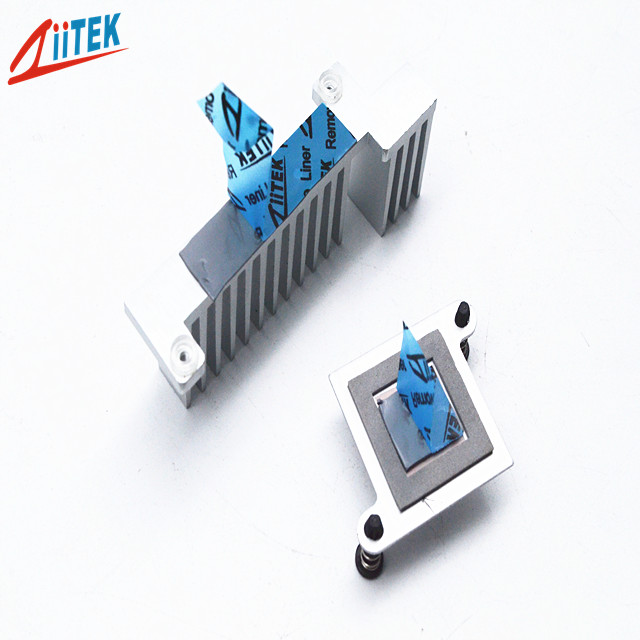

2.5mmT Silicone Thermal Pad 1.8 W/MK 25shore00 For Heat Pipe Thermal Solutions

2.5mmT China company supplied silicone thermal pad 1.8 W/MK 25shore00 For Heat pipe thermal solutions

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

TIF500-18-11US Datasheet-REV02.pdf

Ziitek TIF5100-18-11US is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF580-18-11US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

<Good thermal conductive: 1.8 W/mK

<Thickness:2.5mmT

<High durability

<Easy release construction

<Soft and compressible for low stress applications

<Naturally tacky needing no further adhesive coating

<UL recognized

Applications

<Heat pipe thermal solutions

<Memory Modules

<Monitoring the Power Box

<AD-DC Power Adapters

<Telecommunication hardware

<Handheld portable electronics

Typical Properties of TIF5100-18-11US
Product Name	TIF5100-18-11US Series
Colour	Grey
Construction & Compostion	Ceramic filled silicone rubber
Specific Gravity	2.8 g/cc
Dielectric Constant@1MHz	4.2 MHz
Hardness	20 Shore 00
Flame Rating	94 -V0
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	1.8 W/mK
Thickness	2.5mmT

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

FAQ:

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.
