4.5mmT IT infrastructure applicated,low cost,UL recognized silicone
sheets 1.8 W/MK, 25shore00
Company Profile
With professional R&D capabilities and over 13 year experiences
in thermal interface material industry, Ziitek company own many
unique formulations which are our core technologies and advantages.
Our goal is to provide quality & competitive products to our
customers worldwide aiming for long-term business cooperation.
TIF500-18-11US
Datasheet-REV02.pdf

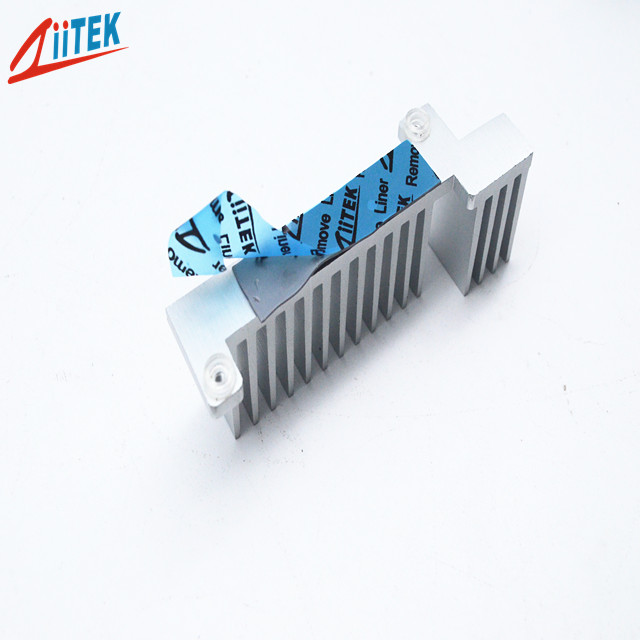

Ziitek TIF5180-18-11US is a highly compliant Gap Pad material that is ideal for fragile
component leads. The material is fiberglass reinforced for improved
puncture resistance and handling TIF5180-18-11US maintains a conformable, yet elastic nature that provides
excellent interfacing and wet-out characteristics, even to surfaces
with high roughness or uneven topography. TIF5180-18-11US features an inherent tack on both sides of the material,
eliminating the need for thermally impeding adhesive layers.Options
and ConfigurationsStandard sheet size - 8" x 16" or custom
configurationStandard thickness available - 0.020", 0.040", 0.060",
0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made
configurations available upon request
Features
<Good thermal conductive: 1.8 W/mK
<Thickness:4.5mmT
<RoHS compliant
<<Moldability for complex parts
<Easy release construction
<Broad range of hardnesses available
Applications
<IT infrastructure
<GPS navigation and other portable devices
<LED Ceilinglamp
<Monitoring the Power Box
<AD-DC Power Adapters
<Telecommunication hardware
<Handheld portable electronics
Typical Properties of TIF5180-18-11US |
Product Name | TIF5180-18-11US Series |
Colour | Grey |
Construction & Compostion | Ceramic filled silicone rubber |
Specific Gravity | 2.8 g/cc |
Dielectric Constant@1MHz | 4.2 MHz |
Hardness | 20 Shore 00 |
Flame Rating | 94 -V0 |
Continuos Use Temp | -40 to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 1.8 W/mK |
Thickness | 4.5mmT |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
