2.5mmT grey thermally conductive silicone rubber 27shore00 for
RDRAM memory modules
Company Profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal
conductive materials, owns advanced production equipment and optimized process, can provide
various thermal solutions for different applications.
TIF500-30-11U
Datasheet-REV02.pdf

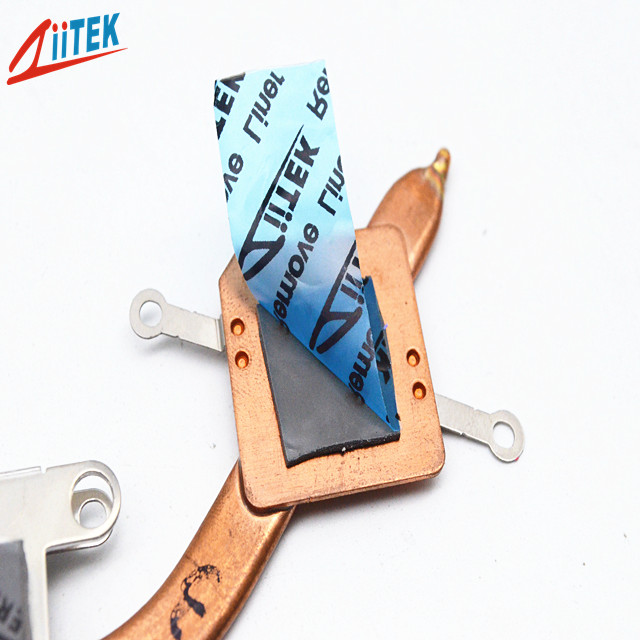

The TIF5100-30-11U is a highly compliant Gap Pad material that is ideal for fragile
component leads. The material is fiberglass reinforced for improved
puncture resistance and handling TIF5100-30-11U maintains a conformable, yet elastic nature that provides excellent
interfacing and wet-out characteristics, even to surfaces with high
roughness or uneven topography. TIF5100-30-11U features an inherent tack on both sides of the material,
eliminating the need for thermally impeding adhesive layers.Options
and ConfigurationsStandard sheet size - 8" x 16" or custom
configurationStandard thickness available - 0.020", 0.040", 0.060",
0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made
configurations available upon request
Features
<Broad range of hardnesses available 3.0W/mK
<Thickness:2.5mmT
<High tack surface reduces contact resistance
<Moldability for complex parts
<Broad range of hardnesses available
Applications
<RDRAM memory modules
<Micro heat pipe thermal solutions
<LED Power Supply
<LED Controller
<Memory Modules
<Mass storage devices
Typical Properties of TIF 5100-30-11U |
Product Name | TIF5100-30-11U Series |
Colour | Grey |
Construction & Compostion | Ceramic filled silicone rubber |
Specific Gravity | 3.0g/cc |
Dielectric Constant@1MHz | 4.4 MHz |
Hardness | 27Shore 00 |
Flame Rating | 94 -V0 |
Continuos Use Temp | -40to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 3.0 W/mK |
Thickness | 2.5mmT |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
