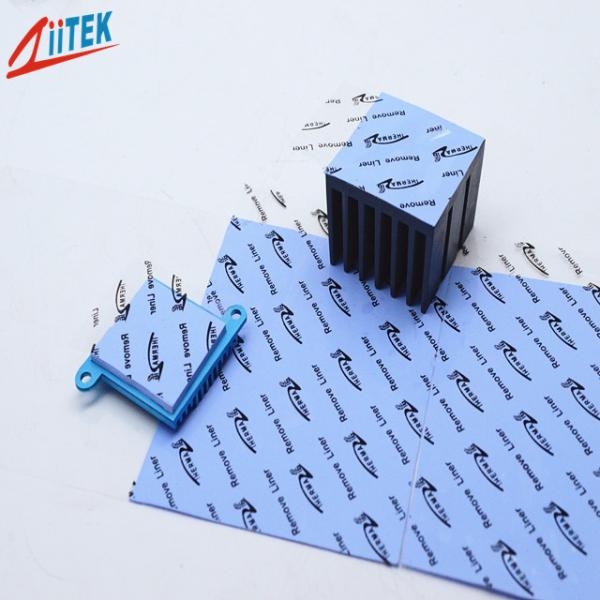

Compressible Blue Silicone Thermal Pad High Conductivity for Micro Heat Pipe

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF520S thermal pad
Certification :	UL
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	100000pcs/month
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

Compressible Blue Silicone Thermal Pad High Conductivity for Micro Heat Pipe

Compressible blue silicone Thermal Pad High Conductivity Micro Heat Pipe Thermal Solutions

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

TIF500S Datasheet-REV02.pdf

The TIF520S is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

<Good thermal conductive:3.2 W/mK

<Thickness:0.5mmT

<High tack surface reduces contact resistance

<RoHS compliant

<UL recognized

<Fiberglass reinforced for puncture, shear and tear resistance

Applications

<Memory Modules

<Mass storage devices

<Automotive electronics

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling

<LED Power Supply

<LED Controller

Typical Properties of TIF 520S
Product Name	TIF520S Series
Colour	Blue
Construction & Compostion	Ceramic filled silicone rubber
Specific Gravity	3.0g/cc
Thickness	0.5mmT
Hardness	45 Shore 00
Tensile Strength	40 psi
Continuos Use Temp	-40to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	3.2 W/mK
Thickness	0.50mm to 5.0mmT

Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

FACTORY INFORMATION:

Factory Size

5,000-10,000 square meters

Factory Country/Region

Building B8, Industry District Ⅱ, Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Annual Output Value

US$1 Million - US$2.5 Million
