UL Recognized 3.2 W/MK Thermal Conductive Gap Pad For Heat Pipe Thermal Solutions

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF560S thermal pad
Certification :	UL
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	100000pcs/month
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

UL Recognized 3.2 W/MK Thermal Conductive Gap Pad For Heat Pipe Thermal Solutions

UL recognized 3.2 W/mK thermal conductive gap pad for heat pipe thermal solutions

Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

TIF500S Datasheet-REV02.pdf

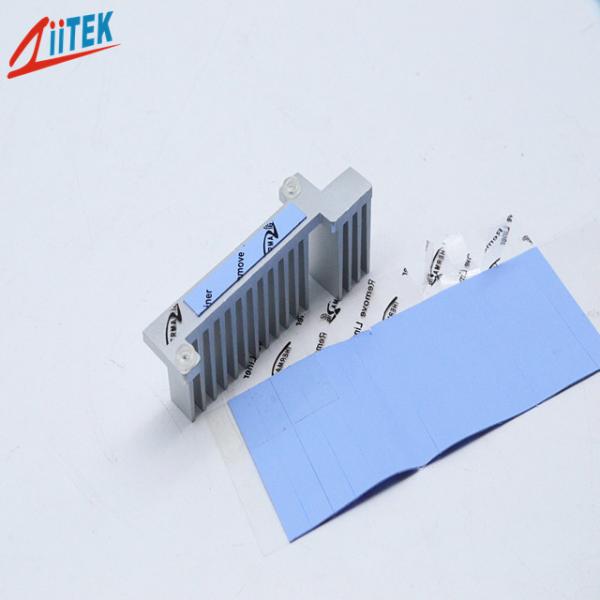

The TIF560S use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features

<Good thermal conductive:3.2 W/mK

<Thickness:1.5mmT

<Hardness:45 Shore 00

<Moldability for complex parts

<RoHS compliant

<UL recognized

<High durability

Applications

<Heat pipe thermal solutions

<Memory Modules

<RDRAM memory modules

<Micro heat pipe thermal solutions

<LED Controller

<LED Ceilinglamp

<Monitoring the Power Box

Typical Properties of TIF 560S
Product Name	TIF560S Series
Colour	Blue
Construction & Compostion	Ceramic filled silicone rubber
Specific Gravity	3.0g/cc
Thickness	1.5mmT
Hardness	45 Shore 00
Tensile Strength	40 psi
Continuos Use Temp	-40to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	3.2 W/mK
Thickness	0.50mm to 5.0mmT

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.
