45 Shore 00 Thermally Conductive Pad Silicone Rubber 3.2W/M-K For IT Infrastructure

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF5180S thermal pad
Certification :	UL
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	100000pcs/month
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

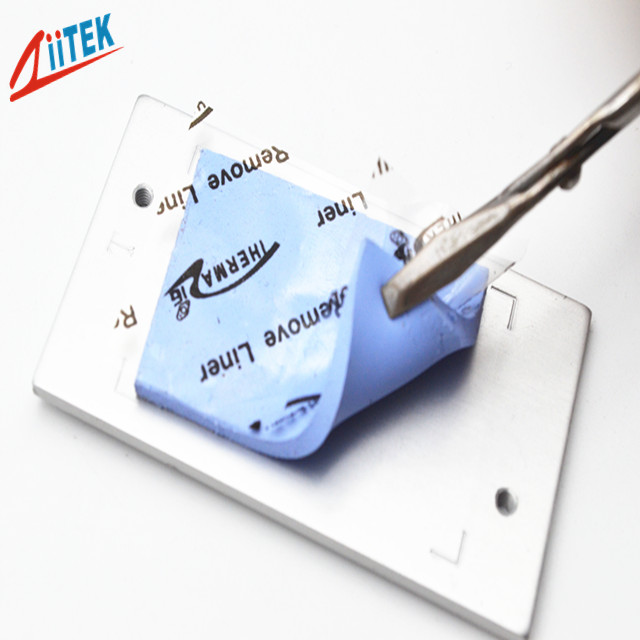

45 Shore 00 Thermally Conductive Pad Silicone Rubber 3.2W/M-K For IT Infrastructure

45 Shore 00 thermally conductive silicone rubber 3.2W/M-K,Specific Gravity :3.0g/cc for IT infrastructure

Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

TIF500S Datasheet-REV02.pdf

The TIF5180S is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

Features

<Good thermal conductive:3.2 W/mK

<Thickness:4.5mmT

<Hardness:45 Shore 00

<Moldability for complex parts

<Electrically isolating

<High durability

Applications

<IT infrastructure

<GPS navigation and other portable devices

<CD-Rom, DVD-Rom cooling

<display card

<mainboard/mother board

<notebook

Typical Properties of TIF 5180S
Product Name	TIF5180S Series
Colour	Blue
Construction & Compostion	Ceramic filled silicone rubber
Specific Gravity	3.0g/cc
Thickness	4.5mmT
Hardness	45 Shore 00
Tensile Strength	40 psi
Continuos Use Temp	-40to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	3.2 W/mK

Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.

Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

TIF™ series Individual die cut shapes can be supplied.

FACTORY INFORMATION:

Factory Size

5,000-10,000 square meters

Factory Country/Region

Building B8, Industry District Ⅱ, Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China

Annual Output Value

US$1 Million - US$2.5 Million

FAQ:

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China
