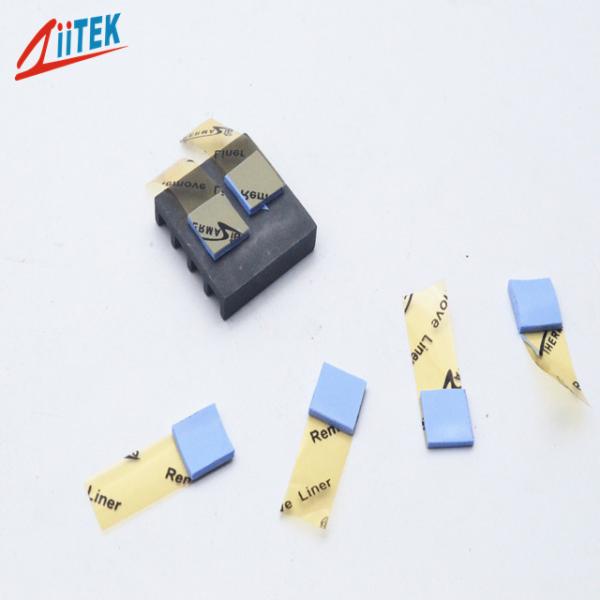

Density: 2.0 g/cm3, blue thermal conductive gap filler 1.2W/M-K For
Automotive electronics
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D,
manufacture and sales of the thermal interface materials (TIMs). We
have rich experiences in this field which can support you the
latest, most effective and one -step thermal management solutions.
We have many advanced production equipments,full test equipments
and fully automatic coating production lines which can support the
production for high performance thermal silicone pad, thermal graphite sheet/
film, thermal double-sided tape, thermal insulation pad, thermal
ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF100-12-05ES-Series-Datasheet.pdfThe TIF180-12-05ES is recommended for applications that require a minimum amount of
pressure on components. The viscoelastic nature of the material
also gives excellent low-stress vibration dampening and shock
absorbing characteristics.TIF180-12-05ES is an electrically isolating material, which allows its use in
applications requiring isolation between heat sinks and
high-voltage, bare-leaded devices.
Features
<Good thermal conductive:1.2 W/mK
<Thickness:2.0mmT
<Hardness:12±5 Shore 00
<Outstanding thermal performance
<Fiberglass reinforced for puncture, shear and tear resistance
<Electrically isolating
Applications
<Automotive engine control units
<Telecommunication hardware
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
Typical Properties of TIF180-12-05ES |
Product Name | TIF180-12-05ES Series |
Colour | Blue |
Construction & Compostion | Ceramic filled silicone rubber |
Density | 2.0 g/cm3 |
Thickness | 2.0mmT |
Hardness | 12±5 Shore 00 |
Tensile Strength | 40 psi |
Continuos Use Temp | -40to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 1.2 W/mK |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ:
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other
requirements, such as adhesive and others. Please let us know these
factors first so that we could give you an exact price.
Q:Is there promotion price for big buyer?
A:Yes, we do have promotion price for big buyer. Please send us
email for inquiry.
