good performance thermal conductive gap pad 2.0 g/cm3 , Continuos Use Temp :-40to 160℃ for CD-Rom, DVD-Rom cooling
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too
much heat affecting its high performance when using. Plus thermal
products can control and manage heat to keep it cool to some
extent.

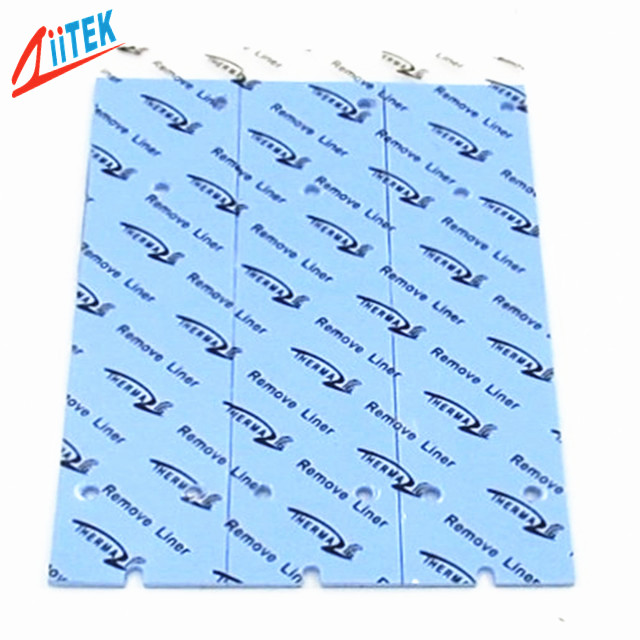

TIF100-05ES-Datasheet.pdfTIF1160-05ES is an extremely soft gap filling material rated at a thermal
conductivity of 1.5W/m-K. It is specially formulated for high performance applications
requiring low assembly stress. The material offers exceptional
thermal performance at low pressures due to the unique filler
package and ultra low modulus resin formulation. TIF1160-05ES is highly conformal to rough or irregular surfaces, allowing
excellent wet-out at the interface. Protective liners are supplied
on both sides allowing for ease of use.
Features
<Good thermal conductive:1.5 W/mK
<Thickness:4.0mmT
<Hardness:12±5 Shore 00
<UL recognized
<Moldability for complex parts
<Naturally tacky needing no further adhesive coating
Applications
<CD-Rom, DVD-Rom cooling
<LED Power Supply
<power supply
<Heat pipe thermal solutions
<Memory Modules
Typical Properties of TIF1160-05ES |
Product Name | TIF1160-05ES Series |
Colour | Blue |
Construction & Compostion | Ceramic filled silicone rubber |
Density | 2.0 g/cm3 |
Thickness | 4.0mmT |
Hardness | 12±5 Shore 00 |
Tensile Strength | 40 psi |
Continuos Use Temp | -40to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 1.5 W/mK |
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
