Factory Supply Thermally Conductive Silicone Rubber Ultra Soft,12±5
Shore 00 ,2.5mmT,1.5 W/MK,
factory supply thermally conductive silicone rubber ultra soft,12±5
Shore 00 ,2.5mmT,1.5 W/mK,
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal
interface materials, thermal conductive insulators, thermally
conductive tapes, electrically & thermally conductive Interface
pads and thermal grease,Thermal Conductive plastic,Silicone
Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
TIF100-01ES-Series-Datasheet.pdf

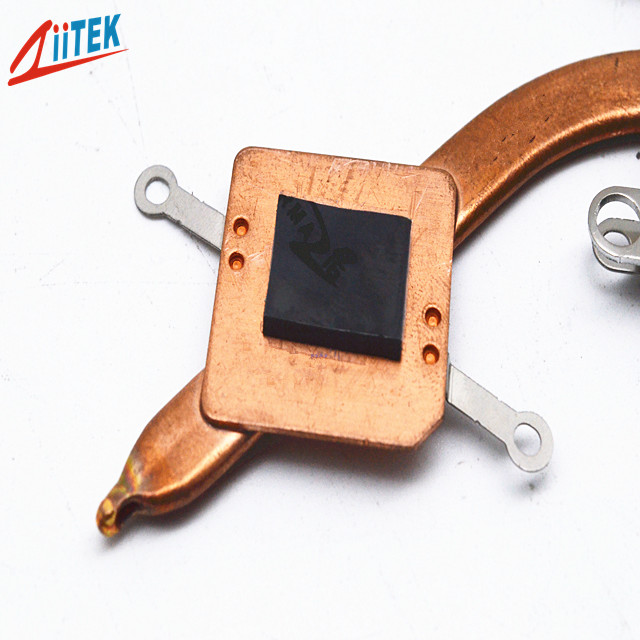

TIF1100-01ES is not only designed to take advantage of the gap heat transfer, to
fill gaps, complete the heat transfer between heating and cooling
parts, but also played insulation, damping, sealing and so on, to
meet the equipment miniaturization and ultra-thin design
Requirements, which is a highly technology and use, and the
thickness of the wide range of applications, is also an excellent
thermal conductivity filler material.
Features
<Good thermal conductive:1.5 W/mK
<Thickness:2.5mmT
<Hardness:12±5 Shore 00
<Colour:drak gray
<High tack surface reduces contact resistance
<RoHS compliant
Applications
<notebook
<power supply
<Heat pipe thermal solutions
<Memory Modules
<CD-Rom, DVD-Rom cooling
<LED Power Supply
<LED Controller
<LED Ceilinglamp
Typical Properties of TIF1100-01ES |
Product Name | TIF1100-01ES Series |
Colour | drak gray |
Construction & Compostion | Ceramic filled silicone rubber |
Specific gravity | 1.9 g/cm3 |
Thickness | 2.5mmT |
Hardness | 12±5 Shore 00 |
Tensile Strength | 40 psi |
Continuos Use Temp | -40to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 1.5 W/mK |
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
