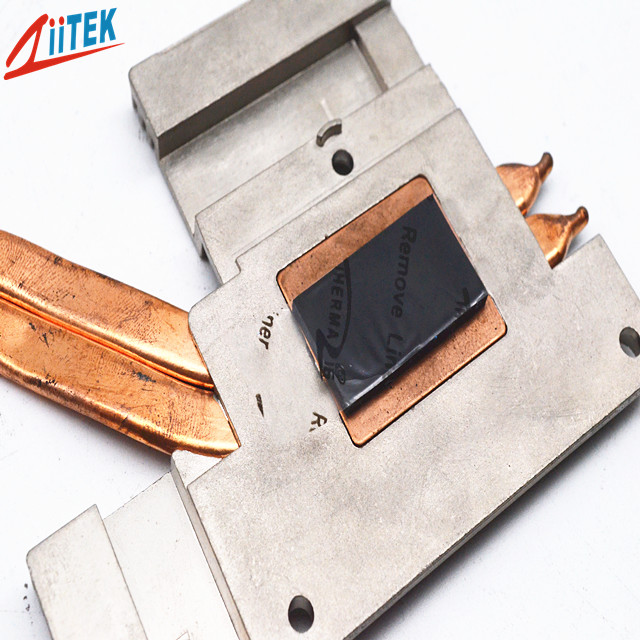

    Ultra Soft 12±5 Shore 00 Thermal Conductive Gap Pad For LED TV TIF140-01ES 1.0mmT

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIF140-01ES thermal pad
    Certification : UL
    Price : 0.1-10 USD/PCS
    Payment Terms : T/T
    Supply Ability : 100000pcs/month
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    Ultra Soft 12±5 Shore 00 Thermal Conductive Gap Pad For LED TV TIF140-01ES 1.0mmT

    Drak gray ultra soft 12±5 Shore 00 thermal conductive gap pad For LED TV and LED-lit lamps,TIF140-01ES ,thicknes:1.0mmT


    Company Profile

    Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.


    TIF100-01ES-Series-Datasheet.pdf

    TIF140-01ES is an extremely soft gap filling material rated at a thermal conductivity of 1.5W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. TIF140-01ES is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.
    Features
    <Good thermal conductive:1.5 W/mK
    <Thickness:1.0mmT
    <Hardness:12±5 Shore 00
    <Colour:drak gray

    <Easy release construction


    <Outstanding thermal performance

    Applications

    <LED TV and LED-lit lamps

    <RDRAM memory modules

    <Micro heat pipe thermal solutions

    <Set top boxes

    <Audio and video components

    <IT infrastructure


    <GPS navigation and other portable devices


    Typical Properties of TIF140-01ES
    Product Name
    TIF140-01ES Series
    Colour
    drak gray
    Construction & Compostion
    Ceramic filled silicone rubber

    Specific gravity

    1.9 g/cm3

    Thickness

    1.0mmT
    Hardness
    12±5 Shore 00
    Tensile Strength
    40 psi
    Continuos Use Temp
    -40to 160℃
    Dielectric Breakdown Voltage
    >5500 VAC
    Thermal conductivity
    1.5 W/mK

    Standard Thicknesses:


    0.020" (0.51mm) 0.030" (0.76mm)

    0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

    0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

    0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

    0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

    0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

    0.190" (4.83mm) 0.200" (5.08mm)


    Consult the factory to alternate thickness.


    Certifications:

    ISO9001:2015

    ISO14001: 2004 IATF16949:2016

    IECQ QC 080000:2017

    UL

    Advantage


    Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.


    They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
