Thermally Conductive Silicone Rubber 20±5 Shore00 3.0mmT

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF1120-30-11US thermal pad
Certification :	UL
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	100000pcs/month
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

Thermally Conductive Silicone Rubber 20±5 Shore00 3.0mmT

Thermally conductive silicone rubber for Available in varies thicknesses,20±5 shore00,3.0mmT

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

TIF100-30-11US-Series-Datasheet-.pdf

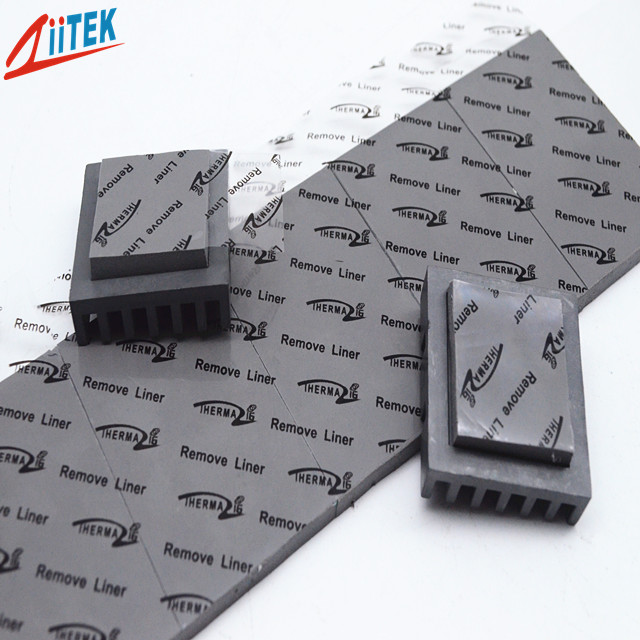

TIF1120-30-11US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling

Features

<Good thermal conductive:3.0W/mK

<Thickness:3.0mmT

<Hardness:20±5 Shore 00

<Colour: gray

<Fiberglass reinforced for puncture, shear and tear resistance

<Easy release construction

<Electrically isolating

Applications

<notebook

<power supply

<Heat pipe thermal solutions

<Memory Modules

<CD-Rom, DVD-Rom cooling

<LED Power Supply

Typical Properties of TIF1120-30-11US
Product Name	TIF1120-30-11US Series
Colour	gray
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	3.0 g/cc
Thickness	3.0mmT
Hardness	20±5Shore 00
Dielectric constant@1MHz	4.0 MHz
Continuos Use Temp	-40to 160℃
Dielectric Breakdown Voltage	>5500 VAC
Thermal conductivity	3.0W/mK
Volume Resistiviyt	1.0*10^{12 _Ohm-cm}

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017
