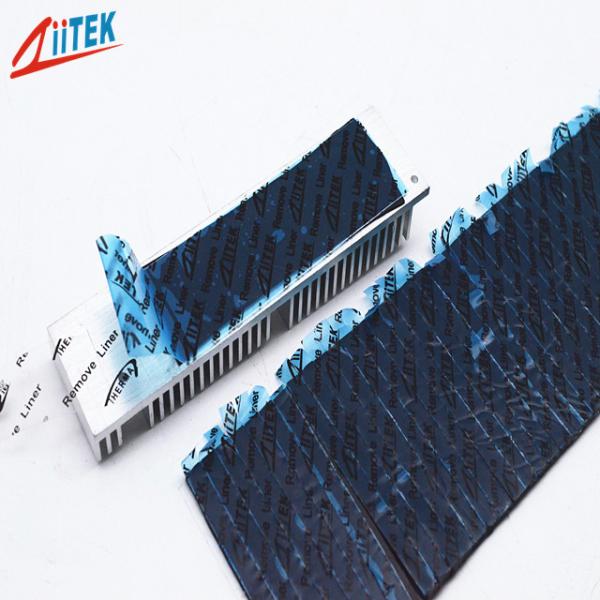

high cost-effective thermal conductive pad,black silicone rubber
pads 18 Shore 00, 1.8W/mK
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to
developing composite thermal solution and manufacturing superior
thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in
thermal engineering field.
We serve customers with customized products, full product lines and
flexible production, which makes us be the best and reliable
partner of you. Let's make your design more perfect!
TIF100-18-01US-Specification-sheet.pdf
TIF1120-18-01US thermal silicone pad is a product with both performance and
economy. It is a unique thermal pad with low oil permeability, low
thermal resistance, high softness and high compliance.It can work
stably at -40℃~160℃ and meet the requirement of UL94V0.
Features
<Good thermal conductive:1.8W/mK
<Thickness:3.0mmT
<Hardness:18 Shore 00
<Colour: black
<Fiberglass reinforced for puncture, shear and tear resistance
<Naturally tacky needing no further adhesive coating
<High durability
Applications
<power supply
<Heat pipe thermal solutions
<Memory Modules
<Monitoring the Power Box
<AD-DC Power Adapters
<Rainproof LED Power
<Waterproof LED Power
Typical Properties of TIF1120-18-01US |
Product Name | TIF1120-18-01US Series |
Colour | black |
Construction & Compostion | Ceramic filled silicone elastomer |
Specific gravity | 2.5 g/cc |
Thickness | 3.0mmT |
Hardness | 18 Shore 00 |
Dielectric constant@1MHz | 4.5 MHz |
Continuos Use Temp | -40to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 1.8 W/mK |
| Volume Resistiviyt | 1.0*1012 Ohm-cm |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
FAQ
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including
dimension , shape , color and coated on side or two sides adhesive
or coated fiberglass. If you want to place a custom order , pls
kindly offer a drawing or leave your custom order information .
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken
by us to assure that the goods are in a good condition during
storage and delivery.
