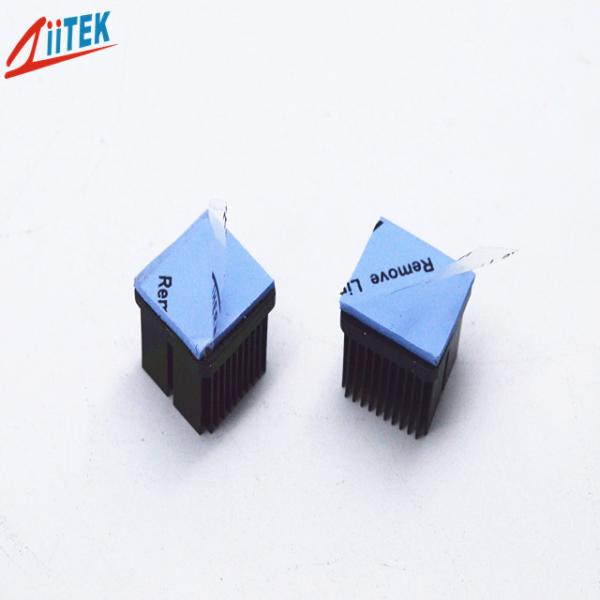

professional ultra soft thermal gap filler Electrically isolating
for notebook ,2.0 g/cc,2.0 mmT
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D,
manufacture and sales of the thermal interface materials (TIMs). We
have rich experiences in this field which can support you the
latest, most effective and one -step thermal management solutions.
We have many advanced production equipments,full test equipments
and fully automatic coating production lines which can support the
production for high performance thermal silicone pad, thermal graphite sheet/
film, thermal double-sided tape, thermal insulation pad, thermal
ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF100-12-05US-Specification-sheet.pdf
TIF180-12-05US use a special process, with silicone as the base material, adding
thermal conductive powder and flame retardant together to make the
mixture to become thermal interface material. This is effective in
lower the thermal resistance between the heat source and the heat
sink.
Features
<Good thermal conductive:1.2W/mK
<Thickness:2.0mmT
<Hardness:20±5 Shore 00
<Colour: blue
<Easy release construction
<Electrically isolating
<High durability
Applications
<Monitoring the Power Box
<AD-DC Power Adapters
<Rainproof LED Power
<notebook
<power supply
<Heat pipe thermal solutions
Typical Properties of TIF180-12-05US |
Product Name | TIF180-12-05US Series |
Colour | blue |
Construction & Compostion | Ceramic filled silicone elastomer |
Specific gravity | 2.0 g/cc |
Thickness | 2.0 mmT |
Hardness | 20±5 Shore 00 |
Dielectric constant@1MHz | 4.5 MHz |
Continuos Use Temp | -40to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 1.2 W/mK |
| Volume Resistiviyt | 1.0*1012 Ohm-cm |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team,
engineering team, R&D team, Manufacturing team, logistics team.
All is for supporting and servicing a satisfy service for
customers.
FAQ
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as
Size(length,width,thickness),color,specific packaging requirements
and purchasing quantity.
