high cost-effective Outstanding thermal performance TIF140-50-11US
thermal pad for routers,20 Shore 00
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers,
low melting point thermal interface materials, thermal conductive
insulators, thermally conductive tapes, electrically & thermally
conductive Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
TIF100-50-11US-Datasheet-REV02.pdf

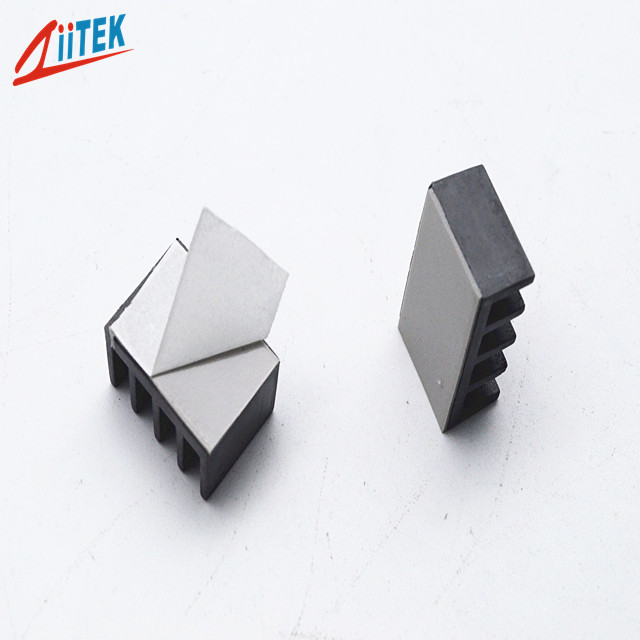

TIF140-50-11US is not only designed to take advantage of the gap heat transfer, to
fill gaps, complete the heat transfer between heating and cooling
parts, but also played insulation, damping, sealing and so on, to
meet the equipment miniaturization and ultra-thin design
Requirements, which is a highly technology and use, and the
thickness of the wide range of applications, is also an excellent
thermal conductivity filler material.
<Good thermal conductive:5.0W/mK
<Thickness:1.0mmT
<Hardness:20 Shore 00
<Colour: gray
<Naturally tacky needing no further adhesive coating
<Available in varies thicknesses
<Broad range of hardnesses available
Applications
<Automotive electronics
<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
<CD-Rom, DVD-Rom cooling
Typical Properties of TIF140-50-11US |
Product Name | TIF140-50-11US Series |
Colour | gray |
Construction & Compostion | Ceramic filled silicone elastomer |
Specific gravity | 2.9 g/cc |
Thickness | 1.0mmT |
Hardness | 20 Shore 00 |
Dielectric constant@1MHz | 4.2 MHz |
Continuos Use Temp | -40to 160℃ |
Dielectric Breakdown Voltage | >5500 VAC |
Thermal conductivity | 5.0 W/mK |
| Volume Resistiviyt | 1.0*1012 Ohm-cm |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality
control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat
dissipation. Please tell us your detailed applications and the
power, so we can recommend most suitable thermal conductive
materials.
