    6W/MK Outgassing 0.30% Silicone Thermal Pad For Electronics 10" x 16"

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIF700HM Series
    Certification : UL & RoHS
    Price : 0.1-10 USD/PCS
    Payment Terms : T/T
    Supply Ability : 1000000 pcs/month
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

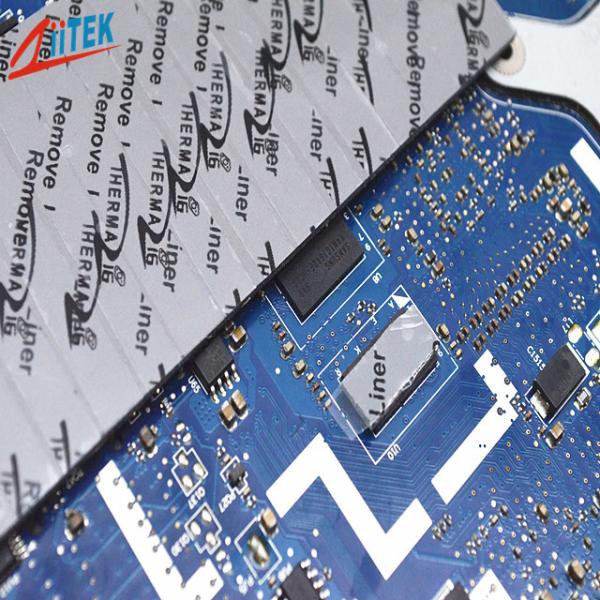

    6W/MK Outgassing 0.30% Silicone Thermal Pad For Electronics 10" x 16"

    China company supplied Outstanding thermal performance 6W/MK outgassing 0.30% silicone thermal pad TIF700HM for electronics

    Company Profile

    With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.


    Ziitek TIF700HM Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF700HM is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.


    Features

    Naturally tacky needing no further adhesive coating
    Available in varies thicknesses
    Broad range of hardnesses available
    Moldability for complex parts
    Outstanding thermal performance
    High tack surface reduces contact resistance
    RoHS compliant

    Applications

    Heat Sinking Housing at LED-lit BLU in LCD
    LED TV and LED-lit lamps
    RDRAM memory modules
    Micro heat pipe thermal solutions
    Automotive engine control units
    Telecommunication hardware
    Handheld portable electronics
    Semiconductor automated test equipment (ATE)
    CPU
    display card
    mainboard/mother board
    notebook
    power supply
    Heat pipe thermal solutions
    Memory Modules

    Typical Properties of TIF700HM Series
    Color
    Gray
    Visual
    Composite Thickness
    Thermal Impedance @10psi
    (℃-in²/W)
    Construction &
    Compostion
    Ceramic filled silicone elastomer
    ***
    10mils / 0.254 mm
    0.16
    20mils / 0.508 mm
    0.20
    Specific Gravity
    3.45 g/cc
    ASTM D297
    30mils / 0.762 mm
    0.31
    40mils / 1.016 mm
    0.36
    Thickness range0.030"-0.400"
    ASTM C351
    50mils / 1.270 mm
    0.42
    60mils / 1.524 mm
    0.48
    Hardness
    50 Shore 00
    ASTM 2240
    70mils / 1.778 mm
    0.53
    80mils / 2.032 mm
    0.63
    Dielectric Breakdown Voltage

    5.5KV
    ASTM D412
    90mils / 2.286 mm
    0.73
    100mils / 2.540 mm
    0.81
    Continuos Use Temp

    -40 to 160℃
    ***
    110mils / 2.794 mm
    0.86
    120mils / 3.048 mm
    0.93
    Outgassing(TML)
    0.30%
    ASTM E595
    130mils / 3.302mm
    1.00
    140mils /3.556 mm
    1.08
    Dielectric Constant
    4.5 MHz
    ASTM D150
    150mils / 3.810 mm
    1.13
    160mils / 4.064 mm
    1.20

    Volume Resistivity
    5.2X10"
    Ohm-meter
    ASTM D257
    170mils / 4.318 mm
    1.24
    180mils / 4.572 mm
    1.32
    Fire rating
    94 V0
    equivalent
    UL
    190mils / 4.826 mm
    1.41
    200mils / 5.080 mm
    1.52
    Thermal conductivity
    6.0W/m-K
    ASTM D5470
    Visua l/ ASTM D751
    ASTM D5470

    Standard Sheets Sizes:

    10" x 16"(254mm x 406mm)


    TIF™ series Individual die cut shapes can be supplied.


    Certifications:

    ISO9001:2015

    ISO14001: 2004 IATF16949:2016

    IECQ QC 080000:2017

    UL


    Ziitek Culture


    Quality :

    Do it right the first time, total quality control

    Effectiveness:

    Work precisely and thoroughly for effectiveness

    Service:

    Quick response, On time delivery and Excellent service

    Team work:

    Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.


    Why Choose us ?


    1.Our value message is'' Do it right the First time, total quality control''.

    2.Our core competencies is thermal conductive interface materials

    3.Competitive advantage products.

    4.Condidentiality agreement Bussiness Secrect Contract

    5.Free sample offer

    6.Quality assurance contract


    Q&A


    Q: Do you accept custom orders ?

    A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .



    TIF700HM Series Datasheet-(E)-REV01.pdf
