10MHz-6GHz thermal conductivity Thermal Absorbing Materials TIR930-A 0.03-0.5mmT 40-60SHORE A hardness
Company ProfileZiitek company is a high-tech enterprise which dedicated to the R&D,
manufacture and sales of the thermal interface materials (TIMs). We
have rich experiences in this field which can support you the
latest, most effective and one -step thermal management solutions.
We have many advanced production equipments,full test equipments
and fully automatic coating production lines which can support the
production for high performance thermal silicone pad, thermal graphite sheet/
film, thermal double-sided tape, thermal insulation pad, thermal
ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIR930-A-Series(E).pdf
Applications:
Provide EMC material solutions for EMI & EMS issue for IT devices
1.1 Metal rubber absorber to conduct different microwave resonance
frequency
within the property of loss energy
1.2 Noise suppressor for electric devices(Smart phones, Tablets,
PCs and etc)
1.3 Receiver sensitivity improvement of PEN input (inductive
coupling type)
1.4 Enhancement of NFC&WPC(PMA/WPC) function within electric
devices
| TIRTM930-A Series Shielding Absorbing Materials |
| Classification | Unit | Values | Test Method |
| Color | NA | Gray | Visual |
| Specific gravity | g/cm3 | 2.1 | ASTM D297 |
| Surface resistance(min.) | Ω | >1 x 1016 | ASTM D257 |
| Hardness | shoreA | 40-60 | ASTM D2240 |

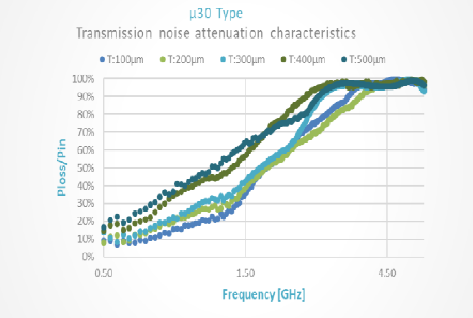

| Effective frequency | Hz | 10MHz-6GHz | ASTM D5470 |
| Temperature range | °C | -40 to +120 | NA |
| Storage conditions | - | 0-30°C/60%±10R.H | NA |
| Shelf life | month | 12 | NA |
| Permeability(1MHz) | u′ | 30±10 | NA |
| Thickness | mm | 0.03mmT-0.5mmT |
| Standard size | mm | 297*210mm |
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries
in English of course.
Standard Export Carton Or Marked With Customer's Information Or
Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if
you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory
solution.
F&Q
Q&A
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
