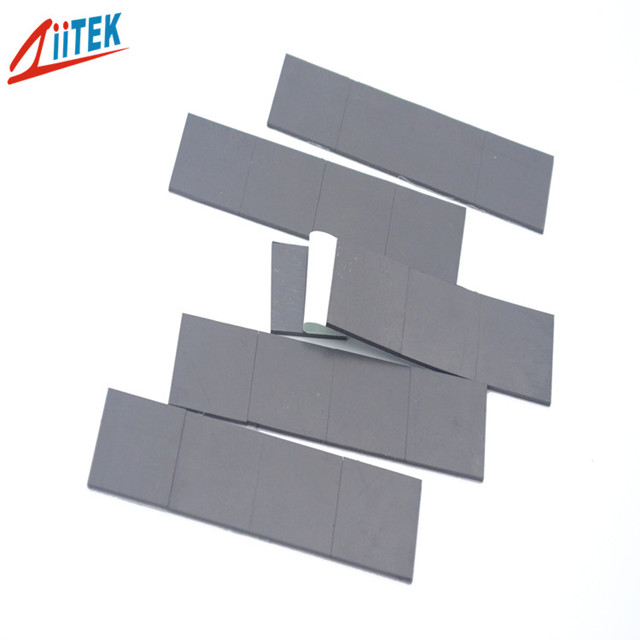

China Company Supplied TIR-HR Series 40GHz-85GHz Thermal Absorbing
Materials 40-60 Shore A Thermal Conductivity 0.6W/Mk
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D,
manufacture and sales of the thermal interface materials (TIMs). We
have rich experiences in this field which can support you the
latest, most effective and one -step thermal management solutions.
We have many advanced production equipments,full test equipments
and fully automatic coating production lines which can support the
production for high performance thermal silicone pad, thermal graphite sheet/
film, thermal double-sided tape, thermal insulation pad, thermal
ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Applications:
Provide EMC material solutions for EMI & EMS issue for IT devices
1.1 Metal rubber absorber to conduct different microwave resonance
frequency
within the property of loss energy
1.2 Noise suppressor for electric devices(Smart phones, Tablets,
PCs and etc)
1.3 Receiver sensitivity improvement of PEN input (inductive
coupling type)
1.4 Enhancement of NFC&WPC(PMA/WPC) function within electric
devices

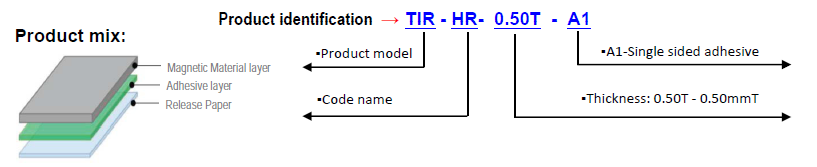

| TIR-HR Series Shielding Absorbing Materials |
| Classification | Unit | Values | Test Method |
| Color | NA | Gray | Visual |
| Specific gravity | g/cm3 | 3 | ASTM D297 |
| Surface resistance(min.) | Ω | >1 x 1012 | ASTM D257 |
| Hardness | shoreA | 40-60 | ASTM D2240 |

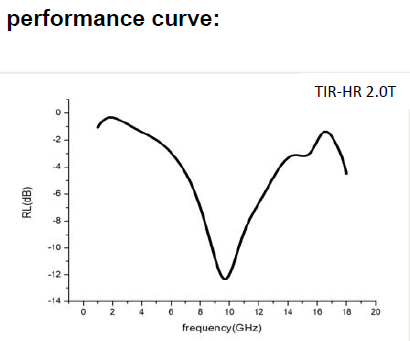

| Effective frequency | Hz | 40GHz-85GHz | ASTM D5470 |
| Temperature range | °C | -40 to +150 | NA |
| Storage conditions | - | 0-30°C/60%±10R.H | NA |
| Shelf life | month | 12 | NA |
| Thermal conductivity | W/mK | 0.6 | ASTM D5470 |
| Thickness | mm | 0.05mmT-2.0mmT |
| Standard size | mm | 300*300mm |
Advantage
Ziitek has independent R&D team. This team is experience,
rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek
thermal conductive materials. With well-equipped testing equipment,
we Ziitek can also do some tests with customers' samples, so we can
find a more suitable Ziitek materials for every customer.
Why Choose us ?
1. Our value message is'' Do it right the First time, total quality control''.
2. Our core competencies is thermal conductive interface materials
3. Competitive advantage products.
4. Condidentiality agreement Bussiness Secrect Contract
5. Free sample offer
6. Quality assurance contract
