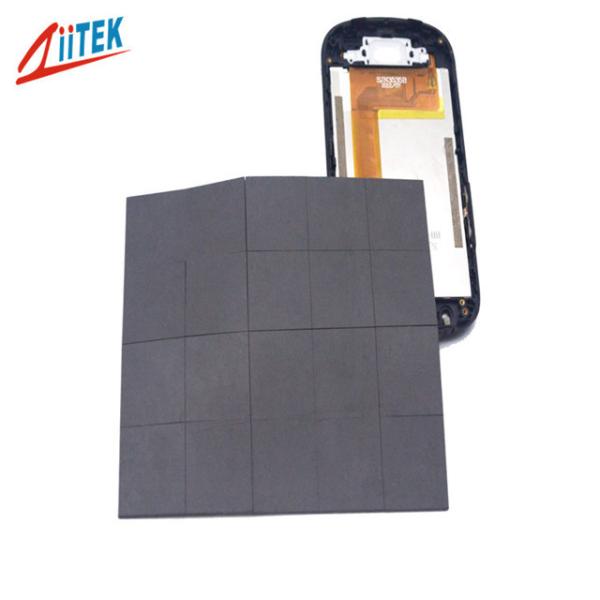

Professional TIR-GC Series 2GHz-12GHz Thermal Absorbing Materials
60-85 Shore A
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and
manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in
thermal engineering field.
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make
your design more perfect!
TIR-GC(E).pdf
Advantage
Ziitek has independent R&D team. This team is experience,
rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek
thermal conductive materials. With well-equipped testing equipment,
we Ziitek can also do some tests with customers' samples, so we can
find a more suitable Ziitek materials for every customer.
Packaging Details & Lead time
The packaging of thermal pad
1. with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Applications:
Provide EMC material solutions for EMI & EMS issue for IT devices
1.1 Metal rubber absorber to conduct different microwave resonance
frequency
within the property of loss energy
1.2 Noise suppressor for electric devices(Smart phones, Tablets,
PCs and etc)
1.3 Receiver sensitivity improvement of PEN input (inductive
coupling type)
1.4 Enhancement of NFC&WPC(PMA/WPC) function within electric
devices
| TIR-GC Series Shielding Absorbing Materials |
| Classification | Unit | Values | Test Method |
| Color | NA | Gray | Visual |
| Specific gravity | g/cm3 | 3 | ASTM D297 |
| Surface resistance(min.) | Ω | >1 x 1012 | ASTM D257 |
| Hardness | shoreA | 60-85 | ASTM D2240 |
| Effective frequency | Hz | 2GHz-12GHz | ASTM D5470 |
| Temperature range | °C | -40 to +150 | NA |
| Storage conditions | - | 0-30°C/60%±10R.H | NA |
| Shelf life | month | 12 | NA |
| Thermal conductivity | W/mK | 1 | ASTM D5470 |
| Thickness | mm | 0.5mmT-2.0mmT |
| Standard size | mm | 300*300mm |
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Q&A
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it
is 7-10 work days if the goods are not in stock, it is according to
quantity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat
dissipation. Please tell us your detailed applications and the
power, so we can recommend most suitable thermal conductive
materials.
Q: Do you accept custom orders ?
A: Yes , welcome to custom orders. Our custom elements including
dimension , shape , color and coated on side or two sides adhesive
or coated fiberglass. If you want to place a custom order , pls
kindly offer a drawing or leave your custom order information .
