    good performance CPU thermal pad TIF5200US with Violet color for various electronic device

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIF5200US thermal pad
    Certification : UL
    Price : 0.1-10 USD/PCS
    Payment Terms : T/T
    Supply Ability : 100000pcs/month
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    good performance CPU thermal pad TIF5200US with Violet color for various electronic device

    good performance CPU thermal pad TIF5200US with Violet color for various electronic device

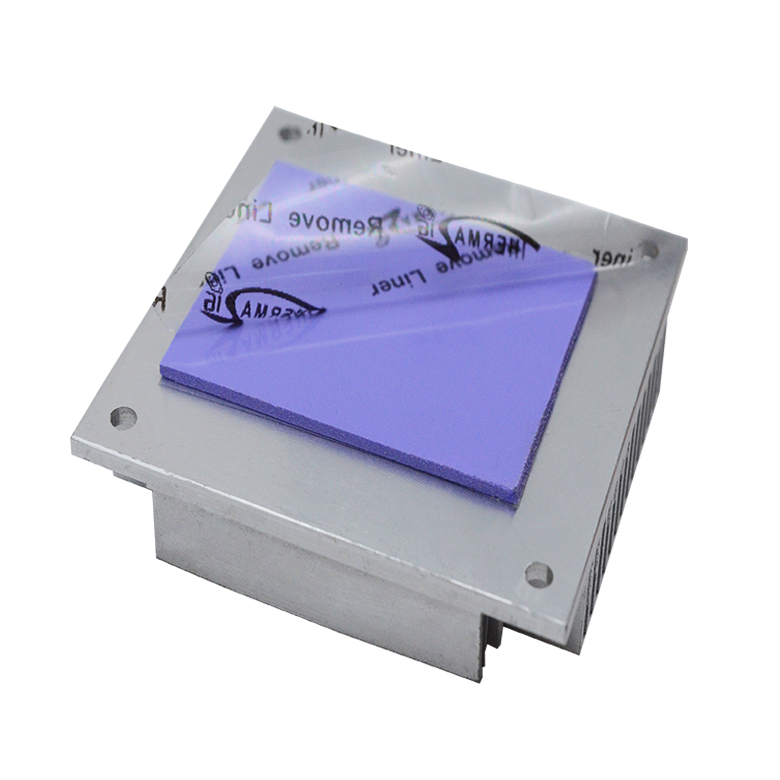

    The TIF5200US is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

    Company Profile

    Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

    Features
    Broad range of hardnesses available 2.6 W/mK
    Electrically isolating
    Outstanding thermal performance


    Applications
    Mass storage devices
    Broad range of hardnesses available
    Handheld portable electronics
    Audio and video components
    Handheld portable electronics
    GPS navigation and other portable devices
    CD-Rom, DVD-Rom cooling


    Typical Properties of TIF 5200US
    Product Name
    TIF5200US Series
    Colour
    Violet
    Construction & Compostion
    Ceramic filled silicone rubber
    Specific Gravity
    2.95 g/cc
    Heat Capacity
    1 l/g-K
    Hardness
    18 Shore 00
    Tensile Strength
    40 psi
    Continuos Use Temp
    -40to 160℃
    Dielectric Breakdown Voltage
    >5500 VAC
    Thermal conductivity
    2.6 W/mK
    Thickness
    5.0 mmT

    Standard Thicknesses:
    0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
    Consult the factory alternate thickness.


    Standard Sheets Sizes:
    8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
    TIF™ series Individual die cut shapes can be supplied.


    Peressure Sensitive Adhesive:
    Request adhesive on one side with "A1" suffix.
    Request adhesive on double side with "A2" suffix.


    Reinforcement:
    TIF™ series sheets type can add with fiberglass reinforced.
