Blue Thermally Conductive Putty 2.9g/CC For Telecom Industry

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF040-12
Certification :	UL
Price :	0.1-100USD/KG
Payment Terms :	T/T
Supply Ability :	10000KG/MONTH
Delivery Time :	3-8 WORK DAYS

Add to Cart

Product Details
Company Profile

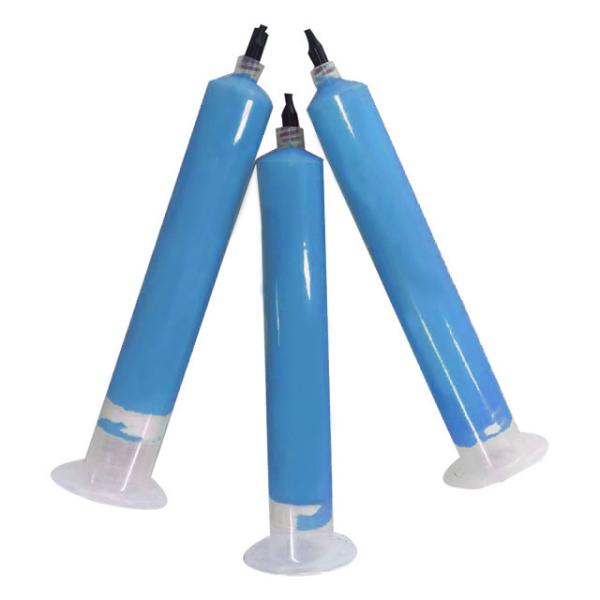

Blue Thermally Conductive Putty 2.9g/CC For Telecom Industry

Operate automaticly blue thermally conductive putty 2.9g/cc for telecom industry

Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

TIF040-12 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIF100-15 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.
TIF040-12 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF100-15 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .

TIF040-12 Series-Datasheet-REV02.pdf

Application

> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe ,Vihicel enginee controler
> Telecom industry

Feature

> Thermal conductivity: 4W/mK
> Soft, very low compression
> Operate automaticly

TIF^TM040-12 Property
Color	Blue	Visual
Construction & Composition	Ceramic filled silicon material	**********
Viscosity	2000,000cps	GB/T 10247
Specific Gravity	2.9 g/cc	ASTM D297
Thermal conductivity	4.0 W/mK	ISO 22007-2
Thermal diffusivity	0.927 mm²/s	ISO 22007-2
Specific heat capacity	2.2 MJ/m³K	ISO 22007-2
Continuous Use Temperature	-45 ~200°C	******
Dielectric breakdown strength	200 V/mil	ASTM D149
Flame Rating	94V0	E331100
Outgassing,%TML	0.70%	ASTM E595

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.Please contact us for confirming.
