IECQ 94 V0 1.5W/MK Thermal Conductive Pad For Routers

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF120-07E Series
Certification :	UL & RoHS
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	1000000 pcs/month
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

IECQ 94 V0 1.5W/MK Thermal Conductive Pad For Routers

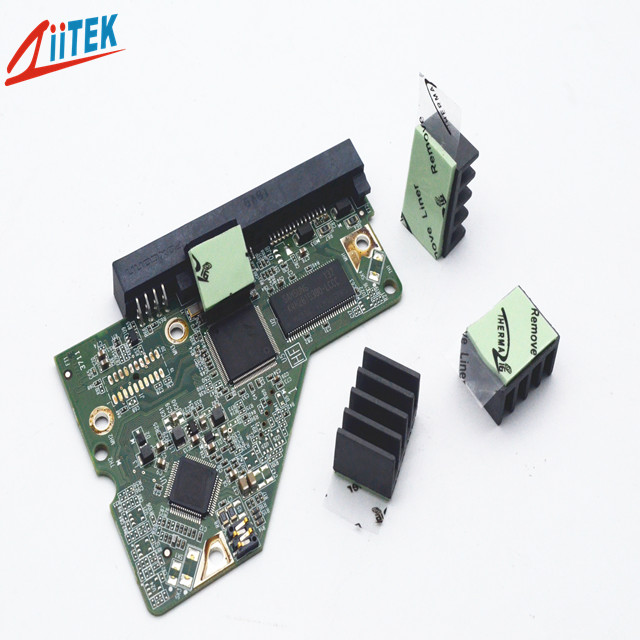

Easily attached green thermal conductive pad TIF120-07E 94 V0 1.5w/mK silicone heatsink pads -40 to 160℃ for routers

Company Profile

With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.

The TIF120-07E Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.

Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available

> High tack surface reduces contact resistance
> Soft and Compressible for low stress applications
> Outstanding thermal performance

Applications
> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> display card

> Micro heat pipe thermal solutions
> Memory Modules

> routers

> Telecommunication hardware

Typical Properties of TIF120-07E Series
Color	Green	Visual	Composite Thickness	Thermal Impedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone elastomer	***	10mils / 0.254 mm	0.16
			20mils / 0.508 mm	0.20
Specific Gravity	2.3 g/cc	ASTM D297	30mils / 0.762 mm	0.31
			40mils / 1.016 mm	0.36
Thickness range	0.020"-0.200"	ASTM C351	50mils / 1.270 mm	0.42
			60mils / 1.524 mm	0.48
Hardness	35 Shore 00	ASTM 2240	70mils / 1.778 mm	0.53
			80mils / 2.032 mm	0.63
Dielectric Breakdown Voltage	>5500 VAC	ASTM D412	90mils / 2.286 mm	0.73
			100mils / 2.540 mm	0.81
Continuos Use Temp	-40 to 160℃	***	110mils / 2.794 mm	0.86
			120mils / 3.048 mm	0.93
Outgassing(TML)	0.35%	ASTM E595	130mils / 3.302mm	1.00
			140mils /3.556 mm	1.08
Dielectric Constant	4.7 MHz	ASTM D150	150mils / 3.810 mm	1.13
			160mils / 4.064 mm	1.20
Volume Resistivity	1.0X10" Ohm-meter	ASTM D257	170mils / 4.318 mm	1.24
			180mils / 4.572 mm	1.32
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.41
			200mils / 5.080 mm	1.52
Thermal conductivity	1.5W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Reinforcement:

TIF™ series sheets type can add with fiberglass reinforced.

Standard Thicknesses:

0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.
