    Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIF100-10E Series
    Certification : UL & RoHS
    Price : 0.1-10 USD/PCS
    Payment Terms : T/T
    Supply Ability : 1000000 pcs/month
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application

    Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application


    The TIF100-10E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.


    Features
    > Good thermal conductive: 1.5W/mK
    > Available in varies thickness
    > UL & ROHS recognized
    > Broad range of hardnesses available
    > High tack surface reduces contact resistance

    > Electrically isolating

    > Easy release construction

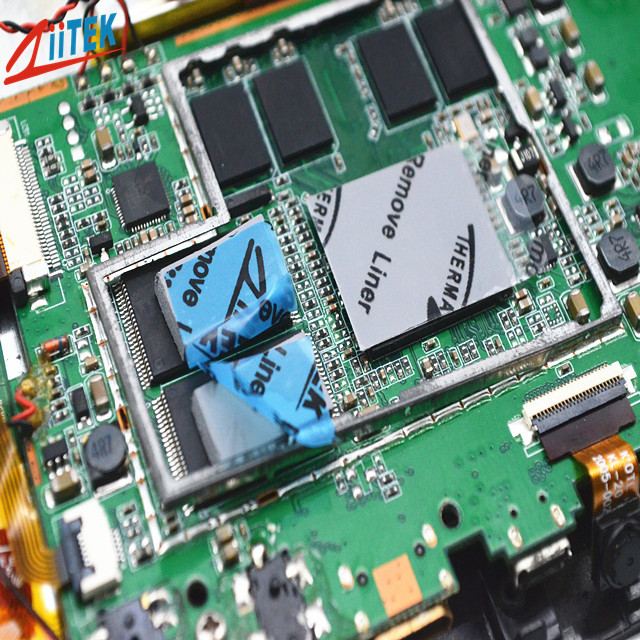

    Applications
    > Micro heat pipe thermal solutions
    > Automotive engine control units
    > Telecommunication hardware
    > Handheld portable electronics
    > Semiconductor automated test equipment (ATE)
    > CPU
    > Display card
    > Mainboard/mother board
    > Notebook
    > Power supply

    Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application


    Typical Properties of TIF100-10E Series
    ColorGrayVisual
    Construction & CompostionCeramic filled silicone elastomer*****
    Specific gravity2.3g/ccASTM D297
    Thickness0.020"(0.5mm)~0.200"(5.0mm)*****
    Hardness35 Shore 00ASTM 2240
    Outgasing (TML)0.35%ASTM E595
    Continuos Use Temp-45 to 200℃***
    Dielectric Breakdown Voltage>5500 VACASTM D149
    Dielectric Constant4.7 MHzASTM D150
    Volume Resistivity(Ohm-cm)2.0X1012ASTM D257
    Fire rating94 V0UL equivalent
    Thermal conductivity1.5W/m-KASTM D5470

    Standard Thicknesses:

    0.020" (0.51mm) 0.030" (0.76mm)

    0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

    0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

    0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

    0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

    0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

    0.190" (4.83mm) 0.200" (5.08mm)

    Consult the factory to alternate thickness.


    Products Sizes

    8" x 16"(203mm x 406mm)

    Individual die cut shapes and custom thickness can be supplier.

    Please contact us for confirming.


    Cooling Gap Filler Thermally Conductive Silicone Thermal Pad In 3.0mm Sizes High Temperature Application

    Packaging Details & Lead time


    The packaging of thermal pad

    1.with PET film or foam-for protection

    2. use Paper Card To Separate Each Layer

    3. export carton inside and outside

    4. meet with customers' requirement-customized


    Lead Time :Quantity(Pieces):5000

    Est. Time(days): To be negotiated
