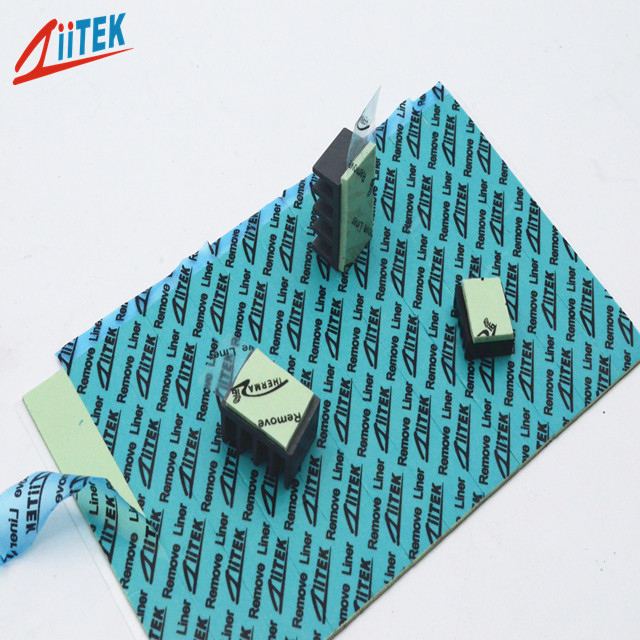

High Tack Surface 1.5W / MK CPU Thermal Pad For GPS navigation and
other portable devices
Company Profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and
manufacturing superior thermal interface materials for competitive market.
Our vast experience allows us to assist our customers best in
thermal engineering field.
The TIF180-07S Series is not only designed to take advantage of the gap heat transfer, to
fill gaps, complete the heat transfer between heating and cooling
parts, but also played insulation, damping, sealing and so on, to
meet the equipment miniaturization and ultra-thin design
Requirements, which is a highly technology and use, and the
thickness of the wide range of applications, is also an excellent
thermal conductivity filler material.
Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance
> Electrically isolating
>Outstanding thermal performance
>Naturally tacky needing no further adhesive coating
Applications
> LED TV / LED Lit Lamps
> Heat pipe thermal solutions
> SAD-DC Power Adapters
> CPU
> Memory Modules
> Mass storage devices
> Automotive electronics
> mainboard/mother board
> IT infrastructure
> GPS navigation and other portable devices
> Audio and video components
Typical Properties of TIF180-07S Series |
Color | Green | Visual | Composite Thickness | Thermal Impedance @10psi
(℃-in²/W) |
Construction &
Compostion | Ceramic filled silicone elastomer | *** | 10mils / 0.254 mm | 0.16 |
20mils / 0.508 mm | 0.20 |
Specific Gravity | 2.10 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.31 |
40mils / 1.016 mm | 0.36 |
| Thickness range | 0.010"-0.200" | ASTM C351 | 50mils / 1.270 mm | 0.42 |
60mils / 1.524 mm | 0.48 |
Hardness | 45 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.53 |
80mils / 2.032 mm | 0.63 |
Dielectric Breakdown Voltage
| >10000 VAC | ASTM D412 | 90mils / 2.286 mm | 0.73 |
100mils / 2.540 mm | 0.81 |
Continuos Use Temp
| -40 to 160℃ | *** | 110mils / 2.794 mm | 0.86 |
120mils / 3.048 mm | 0.93 |
Outgassing(TML) | 0.35% | ASTM E595 | 130mils / 3.302mm | 1.00 |
140mils /3.556 mm | 1.08 |
Dielectric Constant | 5.5 MHz | ASTM D150 | 150mils / 3.810 mm | 1.13 |
160mils / 4.064 mm | 1.20 |
Volume Resistivity | 4.0X10"
Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 1.24 |
180mils / 4.572 mm | 1.32 |
Fire rating | 94 V0 | equivalent
UL | 190mils / 4.826 mm | 1.41 |
200mils / 5.080 mm | 1.52 |
Thermal conductivity | 1.5W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Advantage
Ziitek has independent R&D team. This team is experience,
rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek
thermal conductive materials. With well-equipped testing equipment,
we Ziitek can also do some tests with customers' samples, so we can
find a more suitable Ziitek materials for every customer.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make
your design more perfect!
