China Company Supplied Two Part Formulation Thermally Conductive Putty 3.5W/MK

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF035AB-05S
Certification :	UL
Price :	0.1-100USD/tube
Payment Terms :	T/T
Supply Ability :	100000tubes/MONTH
Delivery Time :	3-8 WORK DAYS

Add to Cart

Product Details
Company Profile

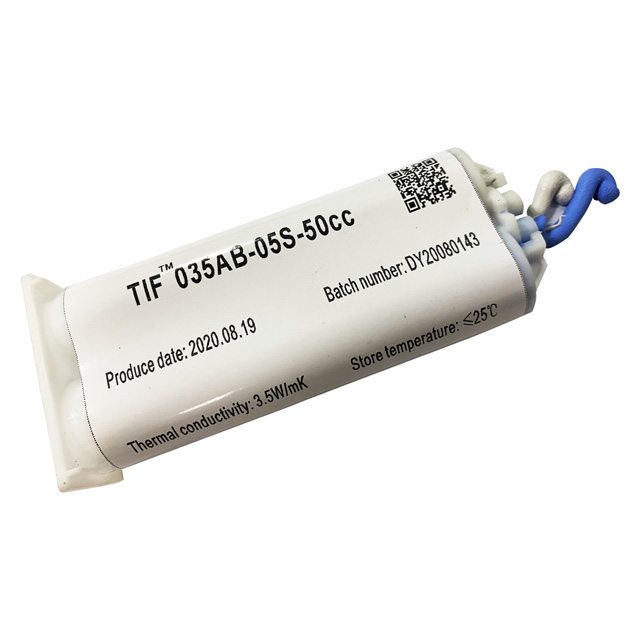

China Company Supplied Two Part Formulation Thermally Conductive Putty 3.5W/MK

Two-part formulation Thermally Conductive Putty for Telecommunications with quickly cured time

Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek TIF035AB-05S Series is a highly thermal conductive, liquid gap filling material. It is provide with two-component and different temperature curing system. The product was supplied as highly thermal conductive, soft and elastomer for coupling on electrical devices modul. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components. It is liquid approach offer variety of thickness, replacing individual die-cut and specific pad thickness. Different from grease, the cured product is dry and can be touch. It can intented for use in thermal applications.

TIF035AB-05S-Datasheet-REV02.pdf

Features:

1. Good thermal conductivity: 3.5W/mk

2. UL recognized

3. Naturally tacky needing no further adhesive coating

4. Two-part formulation for easy storage

5. High durability

6. Optimized shear thinning characteristics for ease of dispensing

Applications:

1. Notebook

2. Set top boxes

3. Monitoring the Power Box

4. High speed mass storage drives

5. Heat sink any heat generating semiconductor

Typical Properties of TIF035AB-05S Series
Typical Uncured Material
Property	Numerical	Test Method
Color/Part A	White	Visual
Color/Part B	Blue	Visual
Viscosity as Mixed (cps)	1500,000 cps	GB/T 10247
Density	3.1g/cc	ASTM D792
Mix Ratio	1:1	******
Shelf Life@25℃	6 months	******
Cure Schedule
Pot Life @25℃	30min	******
Cure @25℃	60min	******
Cure @100℃	30min	Visual
Cure Properties
Color	Blue	Visual
Hardness	45 shore00	ASTM D2240
Continuous Use Temp	﹣45~200℃	******
Voltage Strength	200 V/mil	ASTM D149
Dielectric Constant	4.6MHz	ASTM D150
Volume Resistivity	10¹² Ohm-meter	ASTM D257
Flame Rating	94V0	E331100
Thermal Conductivity	3.5W/Mk	ISO22007-2
Specific Heat Capacity	2.2MJ/m³K	ISO22007-2

Product Specifications:
50cc/pc, 48pcs/box; 400cc/pc, 9pcs/box
We offer the custom packaged in Syringes for automated despensing applications. Please contact us for confirming.

Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

Q&A

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract
