5.6W/mK Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIG780-56
Certification :	RoHS
Price :	USD 1-100/KG
Payment Terms :	TT
Supply Ability :	10000KG/month
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

5.6W/mK Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU

5.6W/mK Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU

TIG™780-56 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.

TIG™780-56 is a heat conducting product in the shape of paste.They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance .Consequently, the heat dissipation efficiency is far superior to that offered by others.

5.6W/mK Gray Thermal Grease Metal Oxide Filled Silicone Oil For Computer CPU

Features

> Low thermal impedance.

> Good thermal conductivity.
> Non-toxic and environmentally safe.

> Excellent long term stability.
> Thoroughly wets out contact surfaces to create low thermal resistance.

Applications

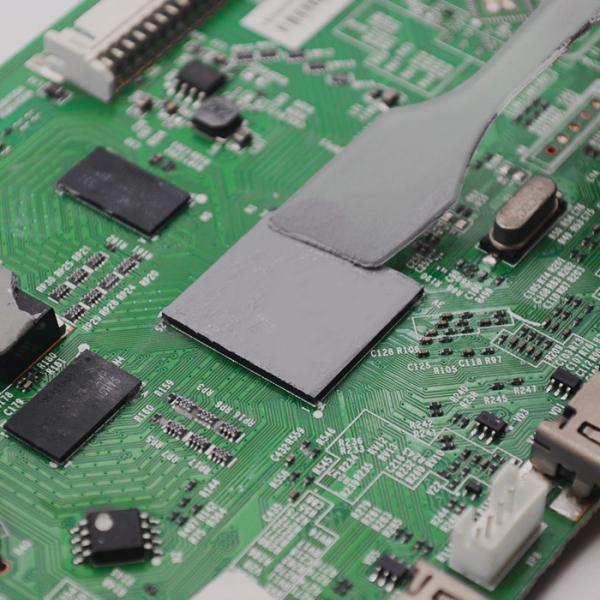

> Semiconductor cases and heat sinks
> Chipsets and Graphic processing
> CPU's and GPU's
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Medical Devices

Typical Properties of TIG™780-56 Series
Product Name	TIG™780-56	Test Method
Color	Gray	Visual
Construction	Metal oxide filled silicone oil	Ziitek Test Method
Specific Gravity	2.3 g/cm3	ASTM 297
Thermal Conductivity	5.6W/mK	ASTM D5470
Viscosity	3700K cps @25℃	Brookfield RVF,#7
Evaporation(TML)	0.18%/200℃ @24 hrs	ASTM D5470
Themal Impedance(℃-in²/W )@ 50 psi	0.005℃-in²/W	ASTM D5470
Recommended operating Temp(℃)	-45℃ to 200℃	Ziitek Test Method

Package
TIG™780-56 Series is available in 1kg (pint container), 3kg (quart container), and 10kg(gallon container).

Storage:
Store from 20°C to 35°C with a maximum humidity of 50%. Do not store in freezer or refrigerator below 10°C.
