RoHS Compliant Silicone Thermal Pad 1.0mm Thickness Thermal Gap Filler For CPU GPU For Medical Devices

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF740QE
Certification :	RoHS and UL recognized
Price :	0.1-10 USD/PCS
Payment Terms :	T/T
Supply Ability :	1000000 pcs/month
Delivery Time :	3-5 work days

Add to Cart

Product Details
Company Profile

RoHS Compliant Silicone Thermal Pad 1.0mm Thickness Thermal Gap Filler For CPU GPU For Medical Devices

RoHS Compliant Silicone Thermal Pad 1.0mm Thickness Thermal Gap Filler For CPU GPU For Medical Devices

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

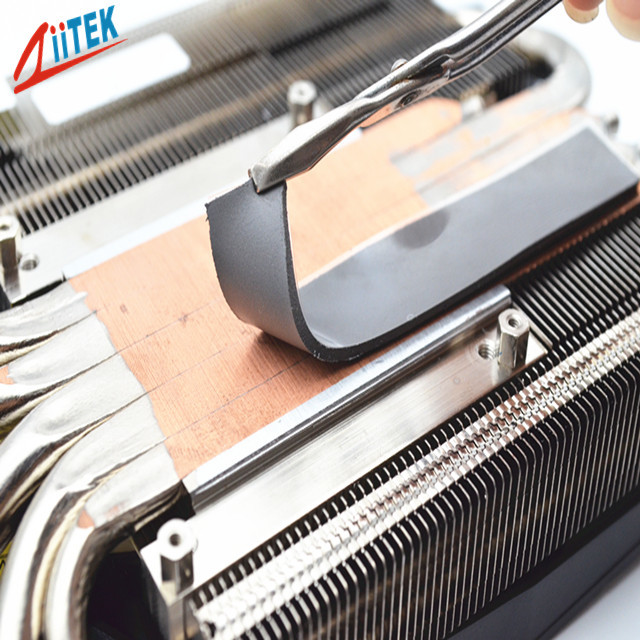

TIF740QE thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.

RoHS Compliant Silicone Thermal Pad 1.0mm Thickness Thermal Gap Filler For CPU GPU For Medical Devices

Features

> Good thermal conductive : 8.0W/mK
> Soft and Compressible for low stressapplications
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating
> Moldability for complex parts
> Outstanding thermal performance

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics

Typical Properties of TIF740QE Series
Color	Gray	Visual
Construction & Compostion	Ceramic filled silicone elastomer	*******
Specific Gravity	3.5g/cc	ASTM D297
Thickness range	1.0mm	ASTM C351
Hardness	35±10 Shore 00	ASTM 2240
Dielectric Breakdown Voltage	>5500 VAC	ASTM D412
Operating Temp	-45 ~200℃	*******
Dielectric Constant	5.5 MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-meter	ASTM D257
Fire rating	94 V0	equivalent UL
Thermal conductivity	8.0W/mK	ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Standard Sheets Sizes:

8" x 16"(203mm x 406mm)

Individual die cut shapes and custom thickness can be supplied.

RoHS Compliant Silicone Thermal Pad 1.0mm Thickness Thermal Gap Filler For CPU GPU For Medical Devices

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.
