Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler

    Buy cheap Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler from wholesalers

    Buy cheap Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler from wholesalers
    • Buy cheap Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler from wholesalers

    Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIF090-11
    Certification : UL
    Price : 0.1-100USD/KG
    Payment Terms : T/T
    Supply Ability : 10000KG/MONTH
    Delivery Time : 3-8 WORK DAYS
    • Product Details
    • Company Profile

    Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler

    Good Thermal Conductive 9.0W Silicone Thermal Gel Silicone Putty Thermal Gap Filler


    TIF®090-11 is a soft silicone-based gap filler pad formulated with thermally conductive fillers and a unique compound that combines excellent themal performance with outstanding softness. Compared to conventional thermal grease,TIF®090-11 has a higher viscosity, effectively preventing the separation of fllers from the siliconebase. lt also offers more stable bond line control under pressure,enhancing product reliability. TIF®090-11 is applied similaty to traditional themal paste and is compatible with various commercial equipment,such as dispensing systems or automated production equipment. lt is suitable for a wide range of high-power electronic components and packaging formats, including flip-chip microprocessors (Flip-Chip MPU),PPGA, micro BGA,BGA,DSP chips, circular accelerator chips, and LED lighting modules.


    Feature
    > Thermal conductivity: 9.0W/mK

    > Soft, very low compression

    > Low thermal inpedance

    > Operate automaticly
    > Proven long-term reliability


    Application
    > Heat-sink & frame
    > LED backlight module,LED lighting

    > High speed hardware driver
    > Micro heat pipe
    > Vihicel enginee controler

    > Telecom industry
    > Semiconductor automatic laboratory equipment

    TIFTM090-11 Typical Property
    PropertyValueTest method
    ColorGrayVisual
    Construction & CompositionCeramic filled silicon material*****
    Viscosity13000K mPa.sGB/T 10247
    Specific Gravity3.45g/cm³ASTM D297
    Thermal conductivity9.0 W/mKASTM D5470
    Thermal resistance @10Psi(℃-in²/W)0.089ASTM D5470
    Thermal resistance @50Psi(℃-in²/W)0.055ASTM D5470
    Recommended Operating temp-45~200℃ISO 22007-2
    Dielectric breakdown strength(V/mm)≥4000ISO 22007-2
    Bond line Thickness0.40******
    D3-D10(Siloxane Content, ppm)<100GC-MS
    Flame RatingV-0UL 94

    Packing details

    30 cc/pc, 98 pc/box;

    300 cc/pc , 6 pc/box

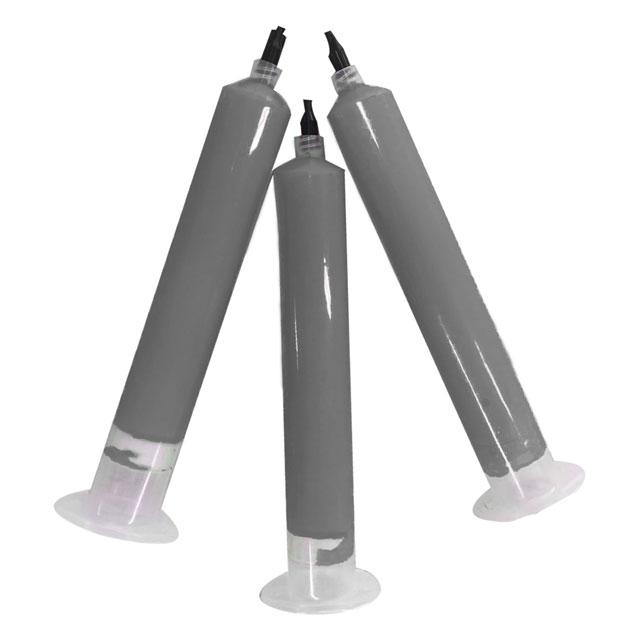

    We offer the custom packaged in syringes for automated despensing applications.

    Please contact us for confirming.

    Company Profile


    Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.


    Q&A


    Q: Are you trading company or manufacturer ?

    A: We are manufacturer in China


    Q: What's the thermal conductivity test method given on the data sheet ?

    A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.


    Q: How to find a right thermal conductivity for my applications

    A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.


    Q: Do you accept custom orders ?

    A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
