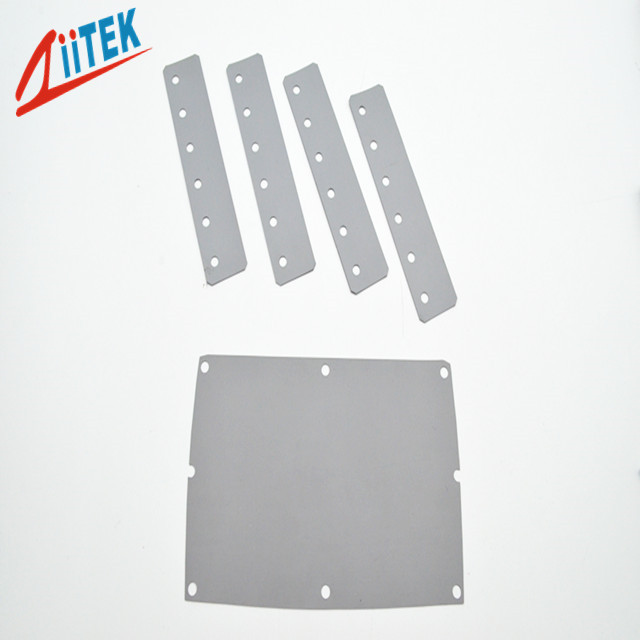

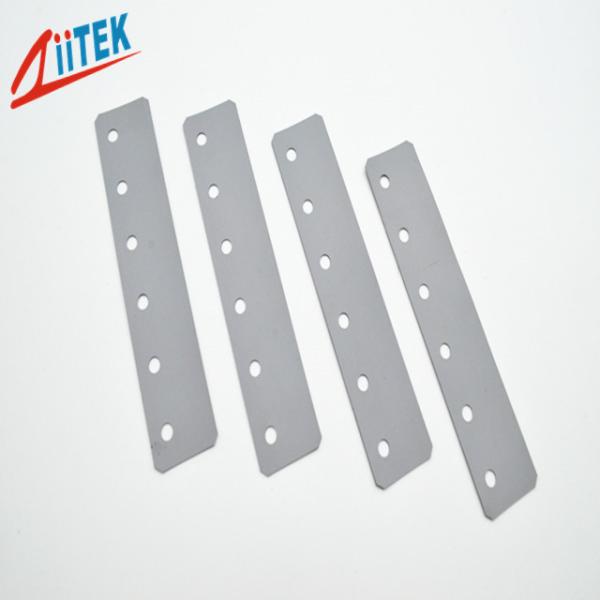

High Voltage Resist Thermal Conductive Insulator Silicone Sheet for
IGBT
Company pfrofile
Ziitek Electronic Material and Technology Ltd. is dedicated to
developing composite thermal solution and manufacturing superior
thermal interface materials for competitive market. Our vast
experience allows us to assist our customers best in thermal
engineering field.We serve customers with customized products, full
product lines and flexible production, which makes us be the best
and reliable partner of you. Let's make your design more perfect!
Products details:
TIS100-01 Series products are the high-efficiency insulation ones with thermal
conduction properties.The supplement of the insulation base film
made by silica gel into the heat-conduction material creates a
great effect on both the insulation and heat conduction.
TIS100-01-Serice-Datasheet.pdf
Features:
> Highly compliant surface characteristic with high thermal
conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures
Applications:
> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface
| Typical Properties TIFTM100-01 Series |
| Color | Gray | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.15mm-0.45mm | ASTM D374 |
| Specific Gravity | 2.06 g/cc | ASTM D297 |
| Tensile Strength | 425 Kpsi | ASTM D412 |
| Continuous Use Temperature | -45~180℃ | ****** |
| Dielectric breakdown voltage | ＞3500VAC | ASTM D149 |
| Dielectric Constant@1MHz | 5.5 | ASTM D150 |
| Volume Resistivity | ＞4*10¹² Ohm-cm | ASTM D257 |
| Thermal Conductivity | 1.0W/mk | ISO22007.2.2 |
| Flame Rating | 94 V0 | UL E331100 |
Product Specification
Product Thicknesses
TIS 106-01: 0.15mm
TIS 108-01: 0.20mm
TIS 109-01: 0.23mm
TIS 110-01: 0.25mm
TIS 112-01: 0.30mm
TIS 118-01: 0.45mm
Product Sizes
12" x 160(304mm x 48.76M)
Individual die cut shapes and custom thickness can be supplied.
Pleasecontact us for confirming.
The product come standard with fiberglass reinforcement designated
bythe suffix "FG".
Packaging Details & Lead time
The packaging of thermal insulation materials
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries
in English of course.
Standard Export Carton Or Marked With Customer's Information Or
Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if
you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory
solution.
