    Silicone Oil Filled Thermal Putty for Low Thermal Resistance in LED Applications

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIG780-25
    Certification : RoHS
    Price : USD 1-100/KG
    Payment Terms : TT
    Supply Ability : 10000KG/month
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    Silicone Oil Filled Thermal Putty for Low Thermal Resistance in LED Applications

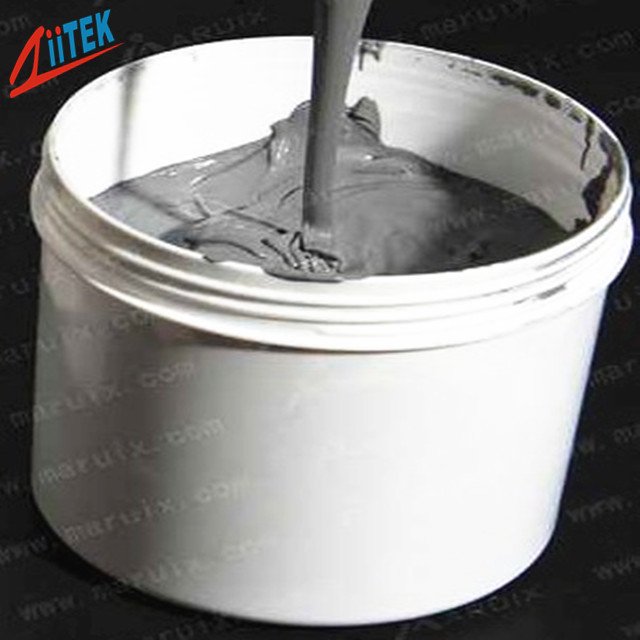

    Thermal Putty 2.5 W Silicone Insulating Low Thermal Resistance Thermal Conductive Paste for LED


    The TIG™780-25 is environmentally safe silicone-based thermal grease designed to solve overheating and reliability issues.


    TIGTM780-25 is presenting thermal paste products. They serve to moisten the contact surface sufficiently so as to form an interface of extremely low thermal impedance. Consequently, the heat dissipation efficiency is far superior to that offered by others.


    TIG780-25-Series-Datasheet.pdf

    Features
    > Good thermal conductivity.
    > Non-toxic and environmentally safe.
    > Excellent long term stability.

    > Thoroughly wets out contact surfaces to create low thermal resistance.

    Applications

    >Microprocessors
    >Chipsets
    >Graphic processing chips
    >Set Top Box

    >LED light,CPU,GPU.

    Typical Properties of TIG™780-25 Series
    ProductNameTIG™780-25Test Method
    ColorGrayVisual
    Construction &Metal oxide filled silicone oil*****
    Compostion
    Viscosity2200K cps @.25℃Brookfield RVF,#7
    Specific Gravity2.46 g/cm3ASTM 2240
    Continuous Use Temp-45℃ to 200℃*****
    Evaporation0.15% / 200℃@24hrsASTM E595
    Thermal Conductivity2.5 W/mKASTM D5470
    Thermal lmpedance0.02℃-in²/W @ 50 psi(344 KPa)ASTM D5470

    Package:
    TIG™780 Series is available in 1kg(pint container),

    3kg(quart container),

    10kg(gallon container)

    or custom packaged in syringes for automated applications.


    Storage:
    Store from 20°C to 35°C with a maximum humidity of

    50%.Do not store in freezer orrefrigerator below 10°C.
