Low Thermal Resistance Phase Change pad For Electronic Components
Ziitek company is a manufacturer of thermal conductive gap fillers,
low melting point thermal interface materials, thermal conductive
insulators, thermally conductive tapes, electrically & thermally
conductive Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
TIC™800A-AL series is low melting point thermal interface material.At 50℃, TIC™800A-AL series begins to soften and flow, filling the microscopic
irregularities of both the thermal solution and the integrated
circuit package surface, thereby reducing thermal resistance.
TIC™800A-AL series is a flexible solid at room temperature and freestanding
without reinforcing components that reduce thermal performance.
TIC™800A-AL Series shows no thermal performance degradation after 1,000
hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material
softens and does not fully change state resulting in minimal
migration (pump out)at operating temperatures.
TIIC800A-AL-data
sheet.pdf
Features
> 0.021℃-in²/W thermal resistance
> Naturally tacky at room temperature, no adhesive required
> No heat sink preheating required
Applications
> Power conversion equipment
> Power semiconductors:
> T0 packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface
| Typical Properties of TICTM800A-AL Series |
| Product Name | TICTM805A-AL | TICTM808A-AL | TICTM810A-AL | TICTM820A-AL | Test Method |
| Color | Gray / Silve | Gray / Silver | Gray / Silver | Gray / Silver | Visual |
| Thickness | 0.005" | 0.008" | 0.010" | 0.020" | ***** |
| (0.126mm) | (0.203mm) | (0.254mm) | (0.508mm) |
| Thickness Tolerance | ±0.0008'' | ±0.0008'' | ±0.0012'' | ±0.0020'' | ***** |
| (±0.019mm) | (±0.019mm) | (±0.030mm) | (±0.050mm) |
| Density | 2.5g/cc | Helium Pycnometer |
| Temperature range | -25℃～125℃ | ***** |
| Phase Change Softening Temperature | 50℃~60℃ | ***** |
| Thermal Conductivity | 2.5 W/mK | ASTM D5470 (modified) |
| Thermal Impedance @ 50 psi(345 KPa) | 0.063℃-in²/W | 0.08℃-in²/W | 0.097℃-in²/W | 0.157℃-in²/W | ASTM D5470 (modified) |
| 0.40℃-cm²/W | 0.52℃-cm²/W | 0.63℃-cm²/W | 1.13℃-cm²/W |
Standard Thicknesses:
0.005"(0.127mm), 0.008"(0.203mm), 0.010"(0.254mm, 0.020"(0.508mm)
Consult the factory alternate thickness.
Standard Sizes:
10"x 16"(254mm x 406mm)

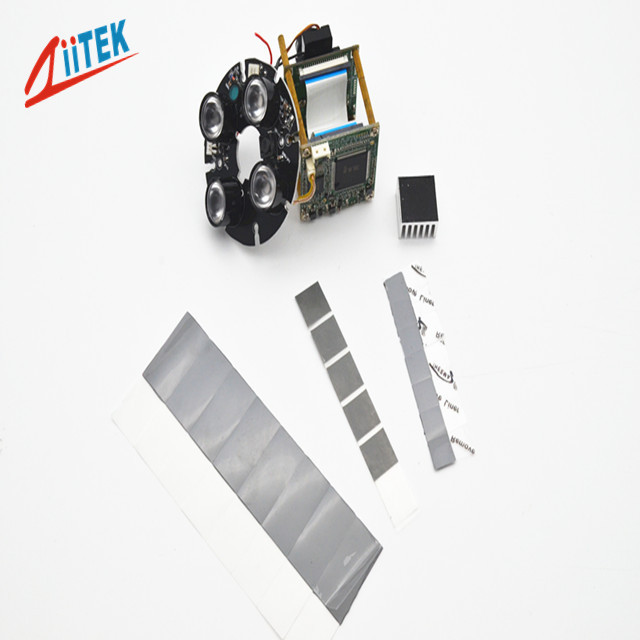

TIC800A-AL series are supplied with a white release paper and a bottom liner.
TIC800A-AL series is available in kiss cut an extended pull tab liner or
individual die cut shapes.
Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC800A-AL series products.
Reinforcement:
No reinforcement is necessary.
Independent R&D team
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and
message to us.
This message should include any questions you might have about the
products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the
process and send your message to us.
4. We will reply you as soon as possible with Email or online.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful
for several months, we can apply other payment term for you, pay
together in every month or 30 days.
Q: What's the thermal conductivity test method given on the data
sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM
D5470 are utilized to test the thermal conductivity.
