3.0W/mK Silicone Thermal Conductive Gel With Tube Packing UL 94 V-0 Flame Rating

Ask Lasest Price
Brand Name :	Ziitek
Model Number :	TIF030-05
Certification :	UL
Price :	0.1-100USD/KG
Payment Terms :	T/T
Supply Ability :	10000KG/MONTH
Delivery Time :	3-8 WORK DAYS

Add to Cart

Product Details
Company Profile

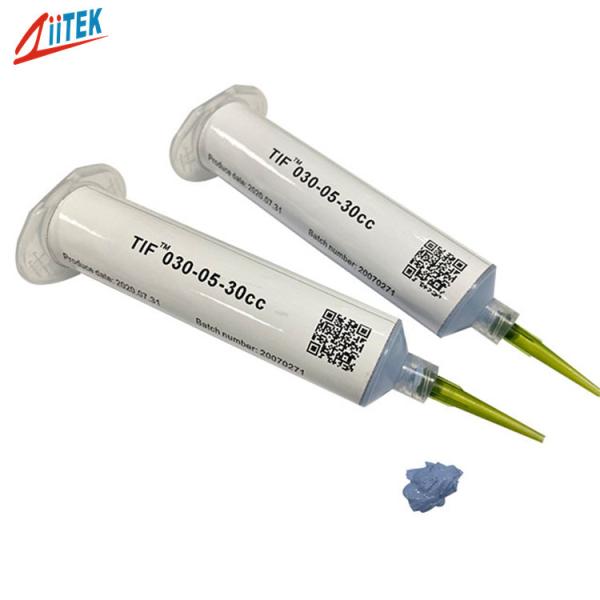

3.0W/mK Silicone Thermal Conductive Gel With Tube Packing UL 94 V-0 Flame Rating

High Quality 3W Silicone Thermal Conductive Gel With Tube Packing

TIF030-05 is a soft silicone putty thermal gap filler,which blend with exclusive formula,that offer superior thermal performance, and compressibility. Due to TIF030-05 is made by high vicosity silicon oil ,that can prevent thermal formula seprate from it. Besides ,compared with traditionally thermal pad, it can control bonded shifiting issue much better.

TIF030-05 operation mold is simliar as grease ,such as silkprint and screen print or automatic injected facility. TIF100-15 can be applied on chip micro processor,PPGAs,Micro BGA package,BGA package,DSP chip,LED lighting and other high power electric component .

TIF030-05 Series Datasheet-REV02.pdf

3.0W/mK Silicone Thermal Conductive Gel With Tube Packing UL 94 V-0 Flame Rating

Application

> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe ,Vihicel enginee controler
> Telecom industry,Semiconducor

Feature

> Thermal conductivity: 3W/mK
> Soft, very low compression

> Low thermal inpedance
> Operate automaticly

TIF^TM030-05 Typical Properties
Color	Blue	Visual
Construction & Composition	Ceramic filled silicon material	**********
Viscosity	2000,000cps	GB/T 10247
Specific Gravity	3.1 g/cc	ASTM D297
Thermal conductivity	3.0 W/mK	ISO 22007-2
Thermal diffusivity	1.053 mm²/s	ISO 22007-2
Specific heat capacity	3.2 MJ/m³K	ISO 22007-2
Continuous Use Temperature	-45 ~200°C	******
Dielectric breakdown strength	200 V/mil	ASTM D149
Flame Rating	94V0	E331100
Outgassing,%TML	0.70%	ASTM E595

30 cc/pc, 98 pc/box; 300 cc/pc 6 pc/box

We offer the custom packaged in syringes for automated despensing applications.

Please contact us for confirming.
