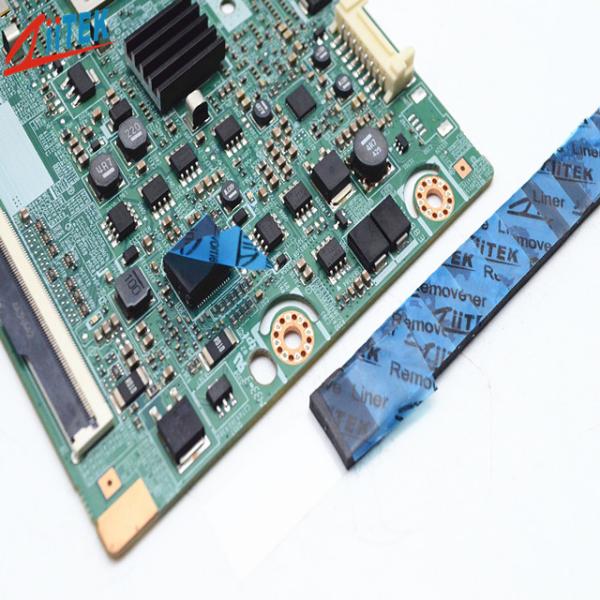

    PCB Board Silicone Thermal Pad Insulation Conductive Pads Electric Thermal Gap Pad

    Ask Lasest Price
    Brand Name : Ziitek
    Model Number : TIF100-01US
    Certification : UL
    Price : 0.1-10 USD/PCS
    Payment Terms : T/T
    Supply Ability : 100000pcs/month
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    PCB Board Silicone Thermal Pad Insulation Conductive Pads Electric Thermal Gap Pad

    PCB Board Silicone Thermal Pad Insulation Conductive Pads Electric Thermal Gap Pad


    Company Profile


    Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!


    Product introduction


    The TIF™100-01US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
    Features
    > Outstanding thermal performance 1.5 W/mK
    > Easy release construction
    > Electrically isolating
    > High durability
    Applications
    > LED TV and LED-lit lamps
    > RDRAM memory modules
    > Micro heat pipe thermal solutions
    > Automotive engine control units
    > Telecommunication hardware
    > Handheld portable electronics
    Typical Properties of TIF 100-01US
    Product Name
    TIF100-01US Series
    Color
    Drak Gray
    Construction & Compostion
    Ceramic filled silicone elastomer
    Specific Gravity
    1.9g/cc
    Hardness
    20±5 Shore 00
    Continuos Use Temp
    -40 to 160℃
    Dielectric Breakdown Voltage(T=1.0mm,Vac)
    ≥5500 VAC
    Dielectric constant @1MHz2.9
    Volume Resistivity≥1.0x10¹²Ohm-cm
    Thermal conductivity
    1.5 W/mK
    Thickness
    0.25mm to 5.0mmT
    Flame Rating94-V0

    Packaging Details & Lead time


    The packaging of thermal pad

    1.with PET film or foam-for protection

    2. use Paper Card To Separate Each Layer

    3. export carton inside and outside

    4. meet with customers' requirement-customized


    Lead Time :Quantity(Pieces):5000

    Est. Time(days): To be negotiated


    Independent R&D team


    Q: How do I place an order?

    A:1. Click the "Sent messages" button to continue with the process.

    2. Fill out the message form by entering a subject line, and message to us.

    This message should include any questions you might have about the products as well as your purchase requests.

    3. Click the "Send" button when you are finished to complete the process and send your message to us

    4. We will reply you as soon as possible with Email or online.


    Certifications:

    ISO9001:2015

    ISO14001: 2004 IATF16949:2016

    IECQ QC 080000:2017

    UL
