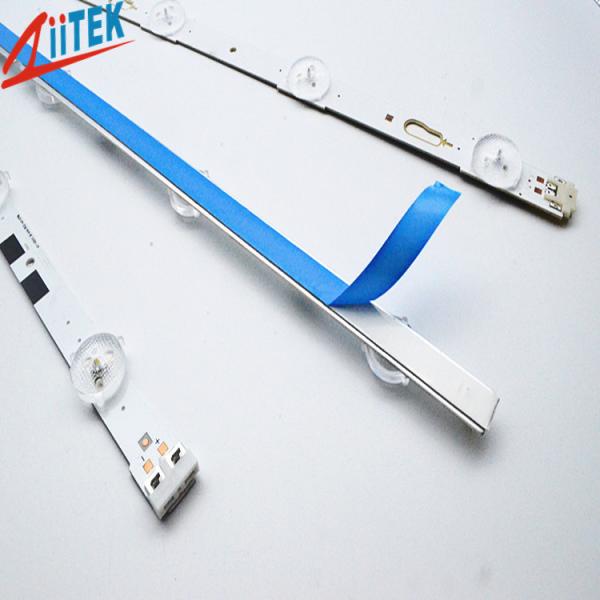

Good Adhesion Glass Fiber Mesh Strengthening High Temperature Heat
Dissipation Double-Sided Tape For LED Strip
With professional R&D capabilities and over 18 year experiences
in thermal interface material industry, Ziitek company own many
unique formulations which are our core technologies and advantages.
Our goal is to provide quality & competitive products to our
customers worldwide aiming for long-term business cooperation.
The TIA™800FG Series products are mostly used for bonding heat dissipation fins,
microprocessors and other power consumption semiconductors. This
type of adhesive tape possesses ultimate bonding strength with low
thermal impedance, with which in effect can be able to replace the
method of lubricating grease and mechanical fixing.
TIA800FG
Series Datasheet-(E)-REV01.pdf
Features
> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided
pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive
Applications
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
> LED Panel Light
> LED floor light
> Routers
Typical Properties of TIA™800FG Series
|
| Product Name | TIATM805FG | TIATM806FG | TIATM808FG | TIATM810FG | TIATM815FG | TIATM820FG | Test Method |
| Color | White | Visual |
| Adhesive Type | Acrylic Adhesive | ******** |
| Backing Type | Glass fiber | ******** |
| Composite Thickness | 0.005" 0.127mm | 0.006" 0.152mm | 0.008" 0.203mm | 0.010" 0.254mm | 0.015" 0.381mm | 0.020" 0.508mm | ASTM D374 |
| Aluminum Foil Thickness | ±0.001" ±0.025mm | ±0.001" ±0.025mm | ±0.0012" ±0.03mm | ±0.0012" ±0.03mm | ±0.0015" ±0.038mm | ±0.002" ±0.05mm | ASTM D374 |
| Voltage Breakdown | > 2000 Vac | > 2000 Vac | > 2300 Vac | > 3000 Vac | > 3500 Vac | > 3500 Vac | ASTM D149 |
| Peel Adhesion | 1200 g/inch2 | JIS K02378 |
| Holding Power 25℃/Days | > 120 kg/inch2 | JIS K023711 |
| Holding Power 120℃/Hours | > 10 kg/inch2 | JIS K023711 |
| Recommend Using Pressure | 10 psi | ******** |
| Thermal Conductivity | 0.8 W/mK | ******** |
| Thermal Impedance@50psi | 0.52℃-in²/W | 0.59℃-in²/W | 0.83℃-in²/W | 0.91℃-in²/W | 1.15℃-in²/W | 1.43℃-in²/W | ASTM D5470 |
Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.010"(0.254mm)
0.015"(0.381mm) 0.020"(0.508mm)
Consult the factory alternate thickness.
Standard Sizes:
10" x 18"(254mm x 457mm) 10" x 400'(254mm x 121.9M)
Individual die cut shapes can be supplied.
Reinforcement:
TIA™800 Series sheets are fiberglass reinforced.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Independent R&D team
