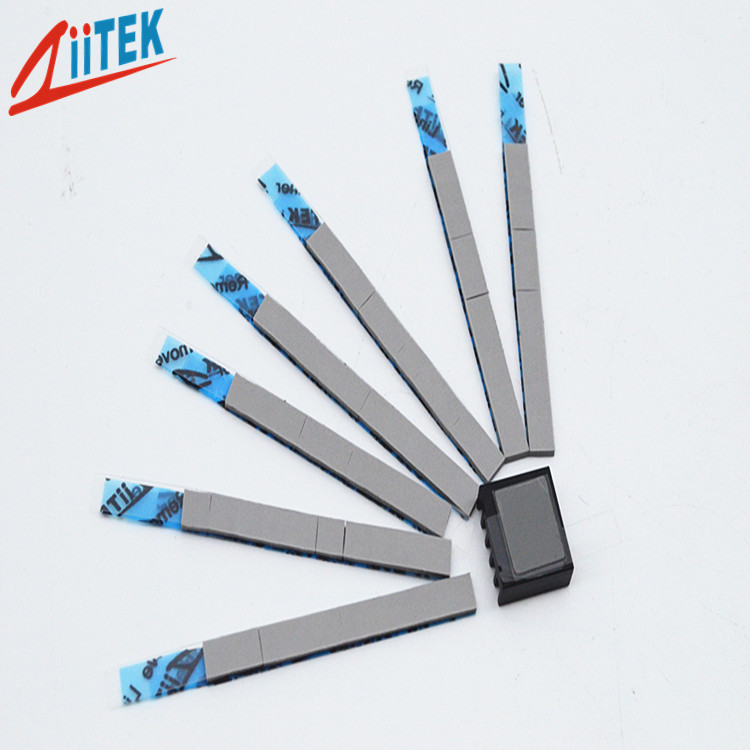

Gray 1.5W/MK Silicone Free Thermal Pad ROSH Compliance For Mass
Storage Devices
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers,
low melting point thermal interface materials, thermal conductive
insulators, thermally conductive tapes, electrically & thermally
conductive Interface pads and thermal grease,Thermal Conductive
plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials
products, with well-equipped testing equipment and strong technical
force.
Z-Paster100-15-02F
Series Datasheet-(E)-REV01.pdf
Z-Paster100-20-11F Series is a high performance and compatible non-silicone material of the
thermal conductive interface materials.The role is to fill the air
gaps between the heating elements and the heat dissipation fins or
the metal base.It is a unique thermal pad with low oil
permeability, low thermal resistance, high softness and high
compliance.
It applies to the liner based on silicone suitably. The flexibility
and elasticity make it suited to the coating of the very uneven
surfaces. Heat can transmit to the metal housing or dissipation
plate from the separate elements or even the entire PCB, which in
effect enhances the efficiency and life-time of the heat-generating
electronic components.
Features
> Silicone-free
> ROSH compliance
> Good thermal conductive:1.5W/mK
> Soft and Compressible for low stress applications
> Available in varies thickness
Application
> Cooling components to the chassis of frame
> Car Battery & Power Supply
> Charging Pile
> Silicone-sensitive applications
> Graphics Card Thermal Module
> Set Top Box
> Medical devices
> LED Lighting
> SFP optical module
> Miniature heat tube radiator
| Typical Properties of Z-Paster100-15-02F Series |
| Color | Gray/White | Visual | Dielectric Breakdown Voltage (T= 1mm above) | >5000 VAC | ASTM D149 |
| Construction | Silicone-free The metal oxide fills | ********** | Dielectric Constant | 5.5 MHz | ASTM D150 |
| Thermal Conductivity | 3.0 W/mK | ASTM D5470 | Volume Resistivity | 6.0X1013 Ohm-meter | ASTM D257 |
| Hardness | 65 Shore 00 | ASTM 2240 | Continuous Use Temp | – 20 To 125 ℃ | ********** |
| Specific Gravity | 2.88 g/cc | ASTM D297 | Outgassing (TML) | 0.30% | ASTM E595 |
| Thickness | 0.020"-0.200" | ASTM D374 | Flame Rating | 94 V-0 | equivalent to |
Standard Thicknesses
0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Options
Proprietary NS1 option available to eliminate tack from one side to
aid in handling.
